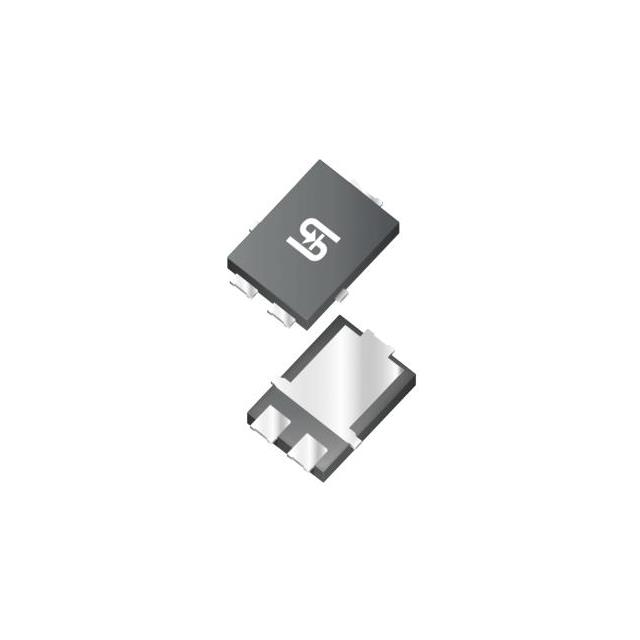

TUAS6J

$0.16

Description：DIODE STANDARD 600V 6A TO277A
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR)

SKU:feb59b183567 Category: Single Diodes Brand: Taiwan Semiconductor Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TUAS6J is listed in the Single Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is DIODE STANDARD 600V 6A TO277A. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for TUAS6J

Description：DIODE STANDARD 600V 6A TO277A
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：6A
Voltage - Forward (Vf) (Max) @ If：1.1 V @ 6 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：5 µA @ 600 V
Capacitance @ Vr, F：43pF @ 4V, 1MHz
Mounting Type：Surface Mount
Package / Case：TO-277, 3-PowerDFN
Supplier Device Package：TO-277A (SMPC4.6U)
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for TUAS6J

TUAS6J

Single Diodes Overview

The TUAS6J is a standard surface mount rectifier manufactured by Taiwan Semiconductor Corporation. It features a single configuration with a maximum forward current of 6 A and a peak forward surge current of 170 A. The device supports reverse voltages ranging from 200 V to 1000 V, with a typical forward voltage of 980 mV. Designed for high reliability, it operates within a junction temperature range of -55°C to +175°C and utilizes a compact surface mount package suitable for automated assembly processes.

Single Diodes Feature Summary

Standard surface mount rectifier design
High thermal stability up to 175°C junction temperature
Robust surge current handling capability

Single Diodes Applications

General purpose rectification in power supplies
Reverse polarity protection circuits
DC-DC converter output stages

Single Diodes Procurement Notes

Verify the specific reverse voltage rating required for the application, as the TUAS6J series covers a range from 200 V to 1000 V. Confirm the exact part number suffix corresponds to the desired voltage class. Ensure compatibility with the target PCB footprint and reflow soldering profile specifications provided in the official datasheet.

Single Diodes Selection Notes

Select this component for applications requiring a 6 A continuous forward current with standard recovery characteristics. Consider the wide operating temperature range for harsh environments. Evaluate the specific voltage variant needed based on the circuit's maximum reverse bias conditions to ensure adequate safety margins.

Single Diodes Part Context

This component belongs to the TUAS6J series of standard rectifiers from Taiwan Semiconductor. These devices are engineered for general-purpose power conversion tasks. The series offers various voltage ratings to accommodate different input and output requirements while maintaining consistent current handling and thermal performance across the product line.
