TV53-30010S-20.950-R

Oscillators Overview

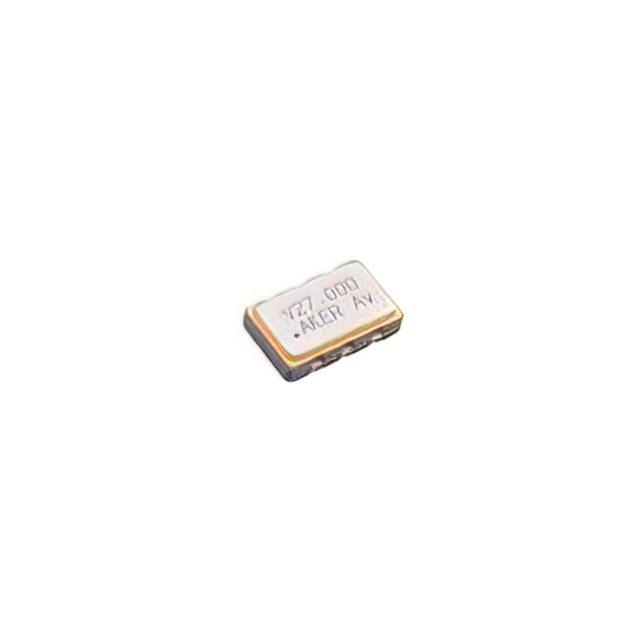

The TV53-30010S-20.950-R is a VCTCXO oscillator manufactured by Aker Technology Corp, operating at a nominal frequency of 20.95 MHz. It delivers a clipped sine wave output and requires a 3V supply voltage. The component features a frequency stability of ±2ppm and an absolute pull range of ±10ppm. It is housed in a compact 4-SMD, No Lead package and supports an operating temperature range of -20°C to +70°C.

Oscillators Feature Summary

• Provides precise timing with high frequency stability for sensitive electronic circuits
• Utilizes a miniature surface-mount package suitable for space-constrained designs
• Operates on a low voltage supply to support energy-efficient applications

Oscillators Applications

• Telecommunications equipment requiring stable clock signals
• Portable consumer electronics with limited power budgets
• Instrumentation systems demanding accurate frequency control

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to ensure compatibility with required pull range and stability specifications. Confirm that the operating temperature range aligns with the intended environmental conditions. Cross-reference the package dimensions with PCB footprint libraries to prevent assembly errors during manufacturing.

Oscillators Selection Notes

Select this component when a clipped sine wave output is acceptable for the load circuit. Consider the ±2ppm stability requirement against system jitter tolerance. Evaluate the 3V supply constraint relative to the host system's available voltage rails. Ensure the 4-SMD form factor fits within the designated area on the printed circuit board layout.

Oscillators Part Context

This part belongs to the VCTCXO series from Aker Technology Corp, designed for applications needing better stability than standard TCXOs without the complexity of higher-end solutions. The brand specializes in frequency control products for automotive, telecommunications, and data storage sectors, offering various packages and frequencies to meet diverse industry standards.

Oscillators Replacement Considerations

Consult official cross-reference tools or distributor databases for direct equivalents. Verify that any substitute matches the 20.95 MHz frequency, 3V supply, and 4-SMD package type. Ensure the replacement maintains equivalent stability and pull range specifications.
