TV75A-H25HM25C-25.000M

Oscillators Overview

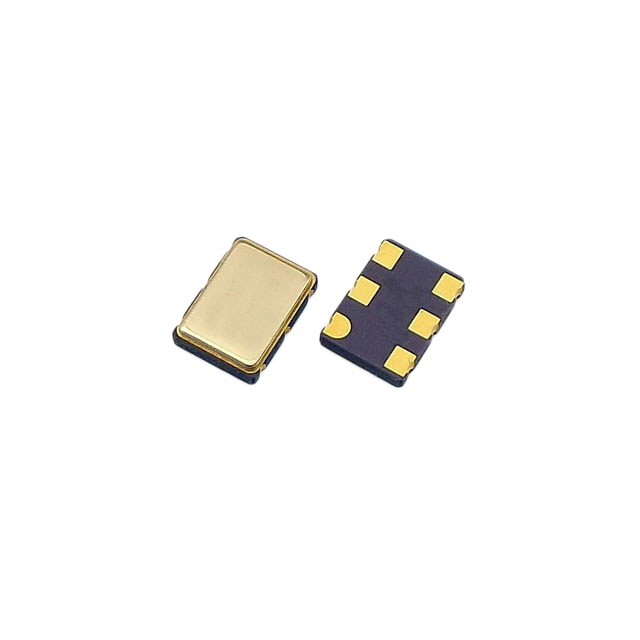

The TV75A-H25HM25C-25.000M is a Voltage Controlled Crystal Oscillator (VCXO) manufactured by Transko Electronics, Inc., operating at a nominal frequency of 25 MHz. It utilizes CMOS output logic and functions with a 2.5V supply voltage. The component features an enable/disable control function and offers a frequency stability of ±25ppm. It is housed in a compact 6-SMD, No Lead package designed for surface mount applications.

Oscillators Feature Summary

• Voltage-controlled operation for precise frequency tuning
• CMOS output interface compatible with standard digital logic
• Integrated enable and disable functionality for power management

Oscillators Applications

• Clock generation systems requiring frequency agility
• Telecommunications equipment utilizing VCXO technology
• Embedded systems needing low-power clock sources

Oscillators Procurement Notes

Verify the specific part number against official Transko Electronics documentation to confirm pinout compatibility and electrical specifications. Ensure that the 2.5V supply requirement aligns with your system design. Confirm that the CMOS output levels are suitable for your downstream logic inputs before finalizing procurement.

Oscillators Selection Notes

Select this component when a voltage-controlled crystal oscillator is required rather than a standard fixed-frequency XO. Consider the ±25ppm stability specification relative to your system's jitter tolerance. Verify that the 6-SMD package dimensions fit within your PCB layout constraints and that the 2.5V operating voltage matches your available power rails.

Oscillators Part Context

This model belongs to the TV75A series of oscillators from Transko Electronics, Inc. The series typically includes various frequency options and output types. This specific variant is distinguished by its 25 MHz center frequency, CMOS output, and 2.5V supply configuration, differentiating it from other series members that may support higher voltages or different output standards like LVPECL.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Cross-referencing requires matching VCXO specifications, including 25 MHz frequency, CMOS output, 2.5V supply, and 6-SMD package footprint.
