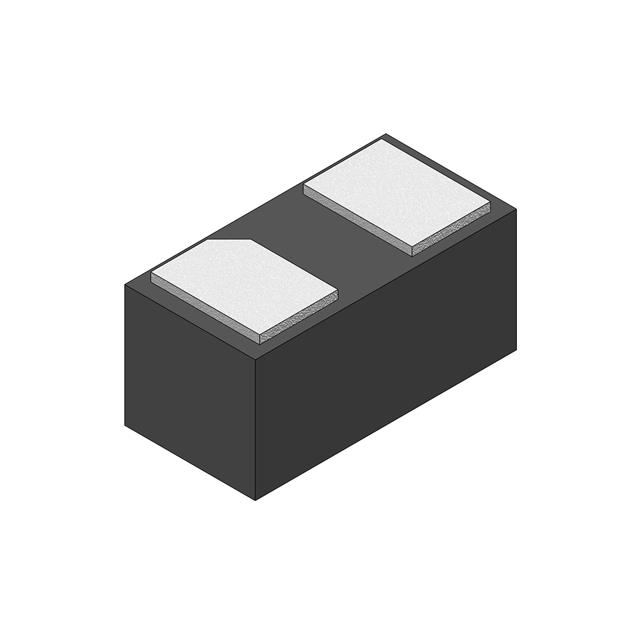

Tvs Diodes TVC5VB1SD-DFN0603-2LDG product image

TVC5VB1SD-DFN0603-2LDG

$0.20

Description：TVS DIODE 5VWM 4.7VC 0201
Series：TVC
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e0c373e76a61 Category: TVS Diodes Brand: INPAQ Technology Co., Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TVC5VB1SD-DFN0603-2LDG is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is TVS DIODE 5VWM 4.7VC 0201. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for TVC5VB1SD-DFN0603-2LDG

Description：TVS DIODE 5VWM 4.7VC 0201
Series：TVC
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Zener
Bidirectional Channels：1
Voltage - Reverse Standoff (Typ)：5V (Max)
Voltage - Breakdown (Min)：6V
Voltage - Clamping (Max) @ Ipp：4.7V (Typ)
Current - Peak Pulse (10/1000µs)：4A (8/20µs)
Power - Peak Pulse：-
Power Line Protection：No
Applications：USB
Capacitance @ Frequency：0.18pF @ 1MHz
Operating Temperature：-55°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：0201 (0603 Metric)
Supplier Device Package：201
Unidirectional Channels：-
Grade：-
Qualification：-

Tvs Diodes datasheet and documents for TVC5VB1SD-DFN0603-2LDG

TVC5VB1SD-DFN0603-2LDG
