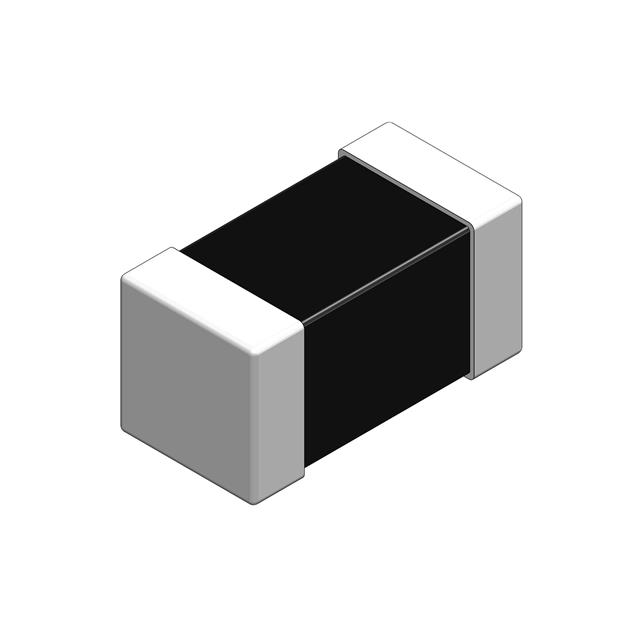

Tvs Diodes TVL02010112VAA0DG product image

TVL02010112VAA0DG

$0.09

Description：TVS DIODE 12VWM 19.4VC 0201
Series：TVL
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:93f4ffb22fd9 Category: TVS Diodes Brand: INPAQ Technology Co., Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TVL02010112VAA0DG is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is TVS DIODE 12VWM 19.4VC 0201. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for TVL02010112VAA0DG

Description：TVS DIODE 12VWM 19.4VC 0201
Series：TVL
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Zener
Bidirectional Channels：1
Voltage - Reverse Standoff (Typ)：12V (Max)
Voltage - Breakdown (Min)：15.5V
Voltage - Clamping (Max) @ Ipp：19.4V (Typ)
Current - Peak Pulse (10/1000µs)：4A (8/20µs)
Power - Peak Pulse：60W
Power Line Protection：No
Applications：General Purpose
Capacitance @ Frequency：8.5pF @ 1MHz
Operating Temperature：-55°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：0201 (0603 Metric)
Supplier Device Package：201
Unidirectional Channels：-
Grade：-
Qualification：-
