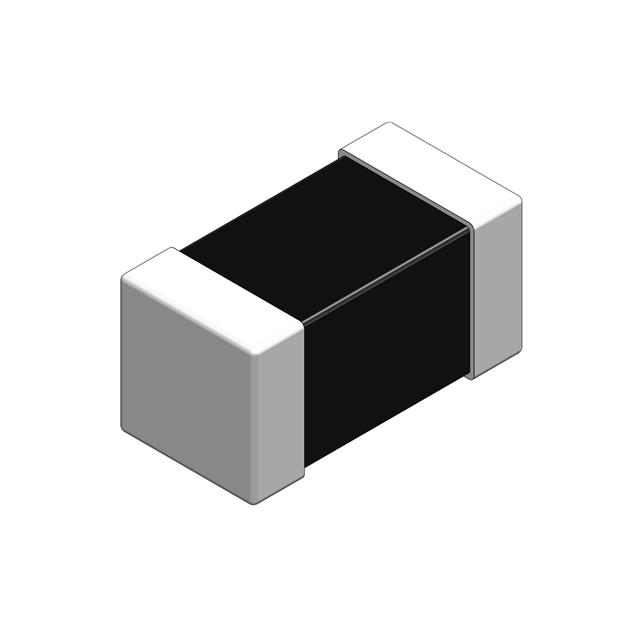

TVL0201019VAA0DG

TVL0201019VAA0DG is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is TVS DIODE 9VWM 17.3VC 0201. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for TVL0201019VAA0DG

• Description：TVS DIODE 9VWM 17.3VC 0201
• Series：TVL
• Mfr：INPAQ Technology Co., Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：1
• Voltage - Reverse Standoff (Typ)：9V (Max)
• Voltage - Breakdown (Min)：10V
• Voltage - Clamping (Max) @ Ipp：17.3V (Typ)
• Current - Peak Pulse (10/1000µs)：6A (8/20µs)
• Power - Peak Pulse：140W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：7.5pF @ 1MHz
• Operating Temperature：-55°C ~ 85°C (TA)
• Mounting Type：Surface Mount
• Package / Case：0201 (0603 Metric)
• Supplier Device Package：201
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for TVL0201019VAA0DG
