TVM36-H20HM33RC-27.000M

Oscillators Overview

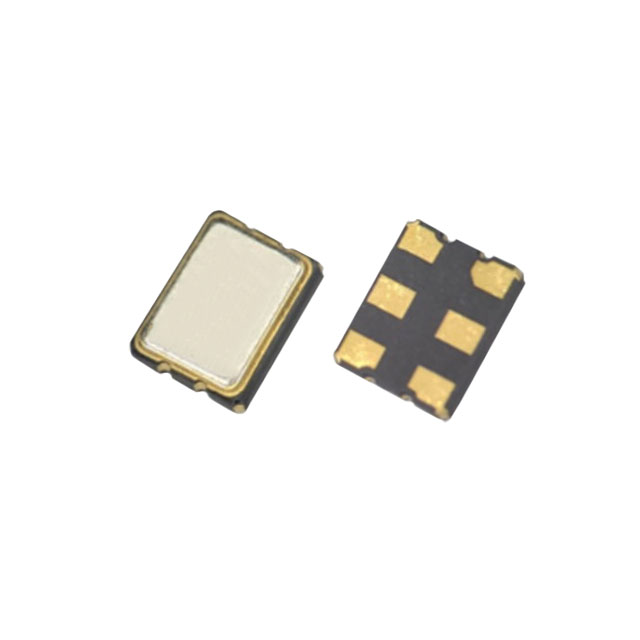

The TVM36-H20HM33RC-27.000M is a Voltage Controlled Crystal Oscillator (VCXO) manufactured by Transko Electronics, Inc., operating at a nominal frequency of 27 MHz. It utilizes an HCMOS output signal and functions within a supply voltage range of 3.3V. The device features a maximum supply current of 15mA and supports an absolute pull range of ±100ppm. Designed for surface mount installation, it operates reliably across a temperature range of 0°C to 70°C.

Oscillators Feature Summary

• Voltage controlled crystal oscillator architecture with HCMOS output
• Surface mount package design for automated assembly
• Operational capability within standard industrial temperature limits

Oscillators Applications

• Clock generation in communication systems requiring frequency adjustment
• Timing reference sources for digital circuits needing voltage control
• Embedded applications utilizing 3.3V logic interfaces

Oscillators Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical characteristics and pinout configuration. Ensure that the required frequency stability and pull range meet the target application specifications before procurement. Cross-reference the package dimensions and mounting type with the PCB layout to guarantee mechanical compatibility and proper soldering procedures during assembly.

Oscillators Selection Notes

Select this component when a voltage-controlled timing source is required rather than a fixed-frequency oscillator. Consider the ±100ppm pull range capability if frequency tuning is necessary within the system design. Evaluate the 3.3V supply requirement and HCMOS output levels against the receiving logic circuitry to ensure signal integrity and power consumption constraints are satisfied for the intended operational environment.

Oscillators Part Context

This model belongs to the Transko Electronics VCXO product line, which provides adjustable frequency oscillators for precision timing applications. The series typically offers various frequency options and output types to support diverse electronic designs. These components serve as critical timing elements where dynamic frequency adjustment is preferred over static crystal references.
