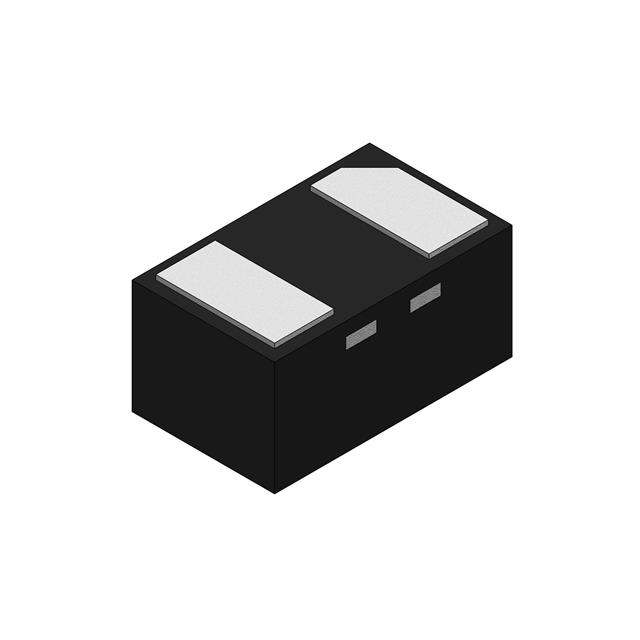

TVN5VB1S-DFN1006-2LDG

TVN5VB1S-DFN1006-2LDG is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is TVS DIODE 5VWM 8.3VC DFN1006. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for TVN5VB1S-DFN1006-2LDG

• Description：TVS DIODE 5VWM 8.3VC DFN1006
• Series：TVN
• Mfr：INPAQ Technology Co., Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：1
• Voltage - Reverse Standoff (Typ)：5V (Max)
• Voltage - Breakdown (Min)：7V
• Voltage - Clamping (Max) @ Ipp：8.3V
• Current - Peak Pulse (10/1000µs)：8A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：Telecom
• Capacitance @ Frequency：18pF @ 1MHz
• Operating Temperature：150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：0402 (1006 Metric)
• Supplier Device Package：DFN1006
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for TVN5VB1S-DFN1006-2LDG
