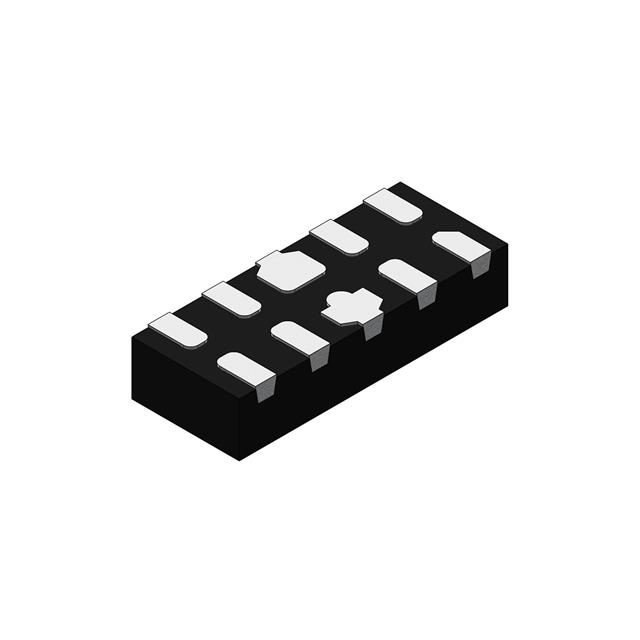

TVU5VU4S-DFN2510-10LDG

TVU5VU4S-DFN2510-10LDG is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is TVS DIODE 5VWM 7.8VC 10DFN. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for TVU5VU4S-DFN2510-10LDG

• Description：TVS DIODE 5VWM 7.8VC 10DFN
• Series：TVU
• Mfr：INPAQ Technology Co., Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Steering (Rail to Rail)
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：5V (Max)
• Voltage - Breakdown (Min)：6V
• Voltage - Clamping (Max) @ Ipp：7.8V
• Current - Peak Pulse (10/1000µs)：5A (8/20µs)
• Power - Peak Pulse：40W
• Power Line Protection：Yes
• Applications：DVI, HDMI, Ethernet, USB
• Capacitance @ Frequency：0.48pF @ 1MHz
• Operating Temperature：-40°C ~ 125°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：10-UFDFN
• Supplier Device Package：10-DFN (2.5x1)
• Unidirectional Channels：4
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for TVU5VU4S-DFN2510-10LDG
