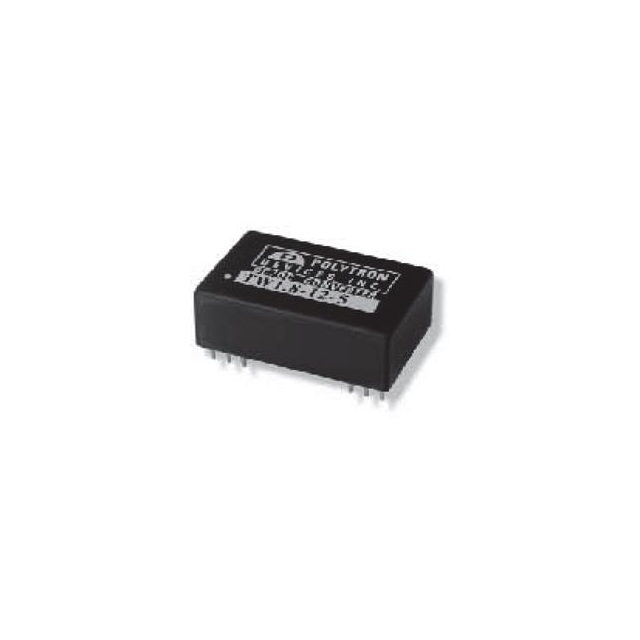

TW1.8-5S9

TW1.8-5S9 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Polytron. Its product description is DC DC CONVERTER 9V 2.25W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TW1.8-5S9

• Description：DC DC CONVERTER 9V 2.25W
• Series：TW3 (3W)
• Mfr：Polytron
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.75V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：2.25 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-25°C ~ 71°C
• Efficiency：55%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 12 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TW1.8-5S9
