TX-T30-15LR-19.200M

Oscillators Overview

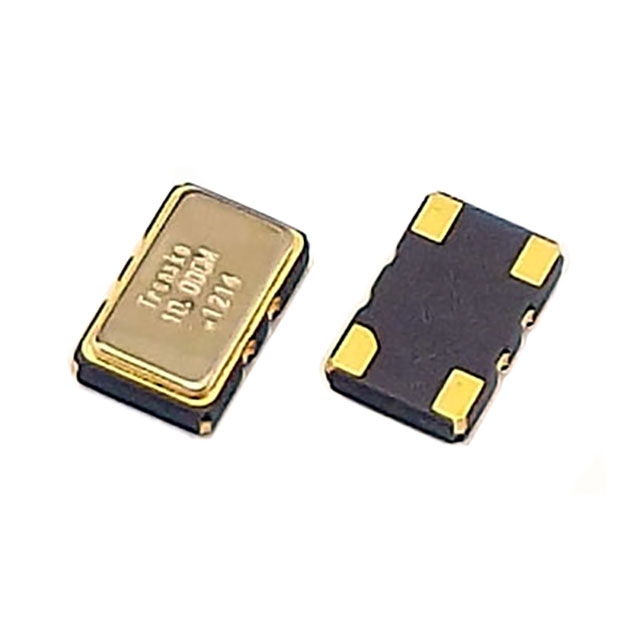

The TX-T30-15LR-19.200M is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Transko Electronics, Inc. It provides a stable output frequency of 19.2 MHz with a CMOS output signal type. The device operates at a supply voltage of 3.3V and utilizes a 4-SMD, No Lead surface mount package. The component is designed for operation within an industrial temperature range of -30°C to +70°C.

Oscillators Feature Summary

• Temperature compensated crystal oscillator design for frequency stability
• CMOS output signal compatibility
• Surface mount package configuration

Oscillators Applications

• Frequency generation in electronic circuits
• Clock source for digital systems
• Telecommunications equipment

Oscillators Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm technical specifications. Ensure that the required operating temperature range and output signal type match the application requirements. Confirm compliance with relevant environmental standards such as RoHS before procurement.

Oscillators Selection Notes

Select this component when a stable 19.2 MHz clock signal is required in a compact surface mount form factor. Consider the CMOS output interface and 3.3V supply voltage constraints. Evaluate the -30°C to +70°C operating range against the environmental conditions of the target system.

Oscillators Part Context

This oscillator belongs to the TX-T30 series from Transko Electronics, which includes various TCXO models with different frequencies and packages. The series offers options for both clipped sine wave and CMOS outputs across multiple frequency points, catering to diverse timing needs in electronic assemblies.

Oscillators Replacement Considerations

Direct substitutes may include other 19.2 MHz TCXOs with identical pinouts and electrical characteristics. Verify compatibility regarding supply voltage, output drive strength, and physical dimensions before substitution.
