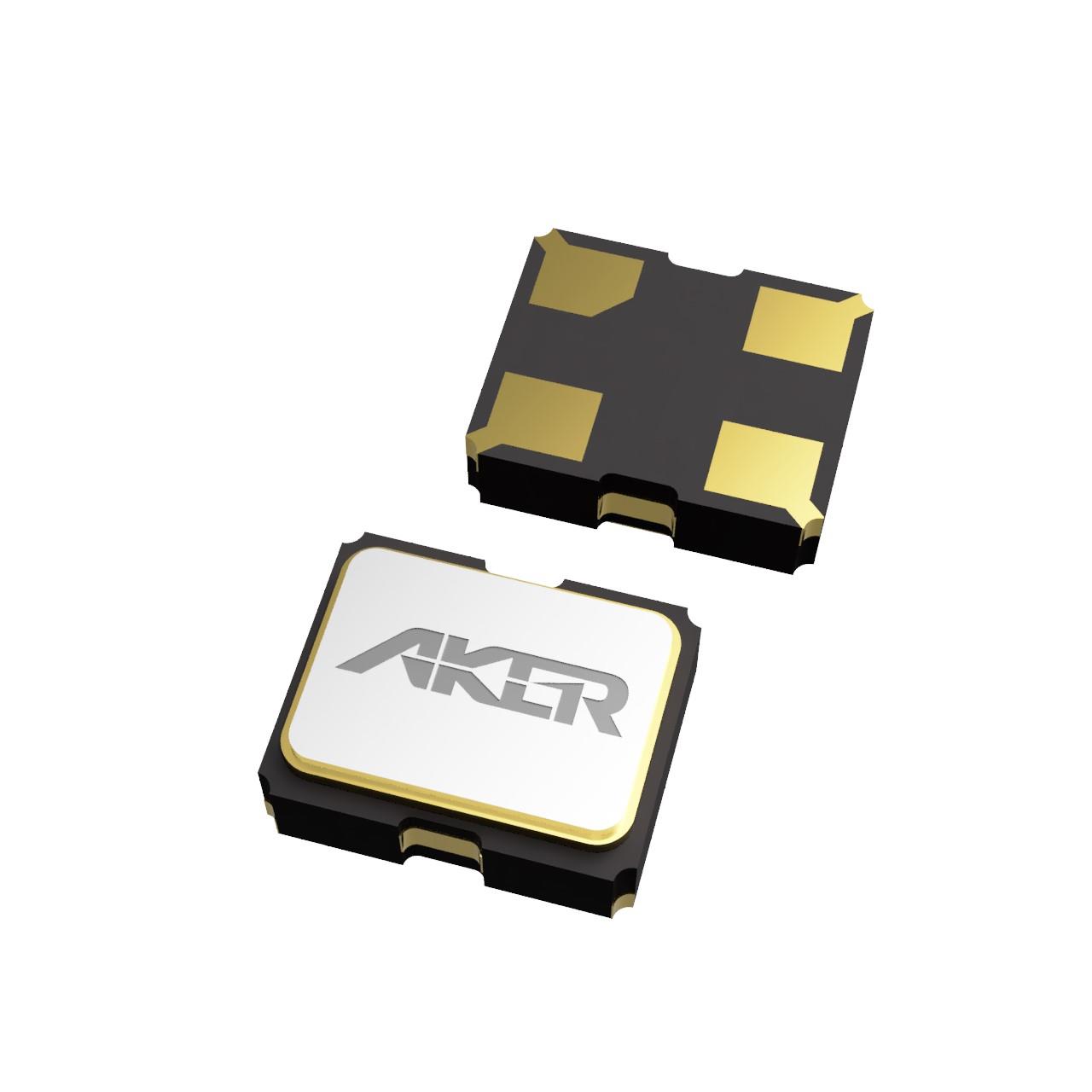

TX22-33010S-26.000-R is listed in the Oscillators range at ChipApex. The manufacturer field lists Aker Technology Corp. Its product description is XTAL OSC TCXO 26.0000MHZ SNWV. Review the specifications below when checking this part for your BOM.
Oscillators specifications for TX22-33010S-26.000-R
- Description：XTAL OSC TCXO 26.0000MHZ SNWV
- Series：TX22
- Mfr：Aker Technology Corp
- Package：Tape & Reel (TR)
- Base Resonator：Crystal
- Type：TCXO
- Frequency：26 MHz
- Function：-
- Output：Clipped Sine Wave
- Voltage - Supply：3.3V
- Frequency Stability：±1ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-20°C ~ 70°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：2.5mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max)：0.031" (0.80mm)
- Supplier Device Package：-
Oscillators datasheet and documents for TX22-33010S-26.000-R
Oscillators Overview
The TX22-33010S-26.000-R is a temperature-compensated crystal oscillator (TCXO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 26 MHz and delivers a clipped sine wave output signal. The device functions with a supply voltage of 3.3V and is housed in a compact 4-SMD, no-lead package. This component is designed for applications requiring stable frequency generation within a small form factor.
Oscillators Feature Summary
- Temperature compensation ensures frequency stability across operating conditions
- Compact surface-mount design suitable for space-constrained PCB layouts
- Clipped sine wave output format compatible with standard digital interfaces
Oscillators Applications
- Wireless communication modules
- Consumer electronics devices
- Industrial control systems
Oscillators Procurement Notes
Verify the specific suffix codes against official Aker Technology documentation to confirm exact electrical tolerances and packaging configurations. Ensure compatibility with the target board's thermal management requirements and supply voltage specifications before finalizing procurement orders.
Oscillators Selection Notes
Select this model when a low-profile TCXO solution is required for 26 MHz clocking needs. Consider the clipped sine wave output characteristics and the 3.3V operating voltage range to ensure alignment with the system's power budget and signal integrity requirements.
Oscillators Part Context
This part belongs to the TX22 series of oscillators from Aker Technology Corp, which focuses on frequency control products. The series includes various models with different frequencies and package options, catering to diverse electronic industry demands since the company's establishment in 1990.
Oscillators Replacement Considerations
Check for direct substitutes such as the TX22-33010S-26.000-X-R or TX22-33010S-26.000-X-M if alternative packaging or minor specification variations are acceptable. Verify pinout and electrical parameters match before substitution.
