TX22-33010S-38.400-X-R

Oscillators Overview

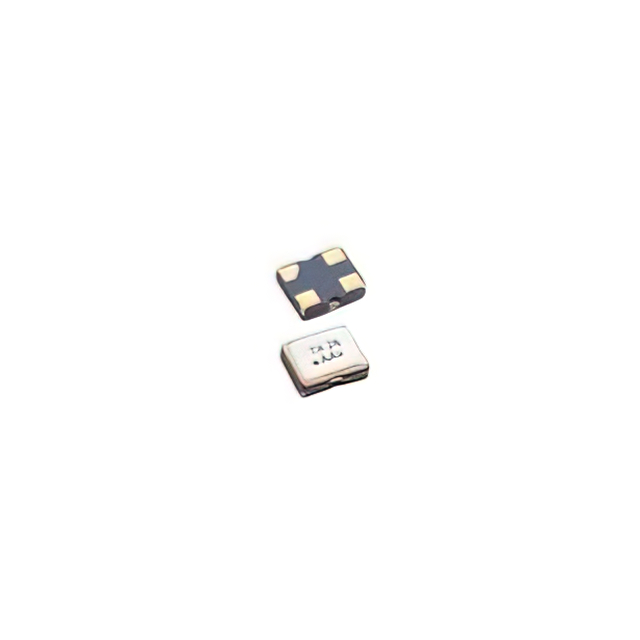

The TX22-33010S-38.400-X-R is a temperature-compensated crystal oscillator (TCXO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 38.4 MHz and utilizes a clipped sine wave output signal. The device is designed for low-power applications, consuming 10 mA typically, and functions within a supply voltage range centered around 3.3V. It features high frequency stability with a tolerance of +/-1 ppm over the operating temperature range of -20°C to +70°C. The component is housed in a compact 4-SMD, no-lead package with dimensions of 2.00mm x 1.60mm, suitable for surface-mount assembly.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency performance across industrial temperature ranges
• Compact surface-mount footprint facilitates automated PCB assembly
• Low current consumption supports power-efficient system designs
• Clipped sine wave output provides clean signal integrity for timing circuits

Oscillators Applications

• Wireless communication modules requiring precise clock sources
• Industrial control systems needing reliable timing under variable temperatures
• Portable electronic devices constrained by size and power budgets
• Network infrastructure equipment demanding high frequency stability

Oscillators Procurement Notes

Verify that the specific ordering suffix matches the required output waveform and tolerance specifications. Confirm the package type corresponds to the designated footprint on the target PCB layout. Ensure the operating temperature range aligns with the environmental conditions of the end application. Cross-reference the manufacturer's latest datasheet to validate pin assignments and electrical characteristics before finalizing procurement orders.

Oscillators Selection Notes

Choose this component when a balance between size, power consumption, and frequency stability is critical. The 38.4 MHz frequency is suitable for specific baud rates and clock divisions. Consider the +/-1 ppm tolerance if tight synchronization is required. Evaluate the 3.3V supply requirement against available power rails. The SMD package choice depends on available board space and manufacturing capabilities.

Oscillators Part Context

This TCXO belongs to Aker Technology's line of precision timing devices, which serve various electronics sectors. The company specializes in frequency control solutions, offering both standard and custom oscillator configurations. This model represents a standard product variant within their portfolio, designed for general-purpose high-stability applications where space and power are limiting factors.

Oscillators Replacement Considerations

Direct substitutes include the TX22-33010S-38.400-R variant, which shares identical electrical parameters and form factor. Verify compatibility regarding output waveform and load capacitance when considering alternative manufacturers. Ensure any replacement maintains the same temperature range and frequency stability metrics.
