TX22-M010S-16.368-X-M

Oscillators Overview

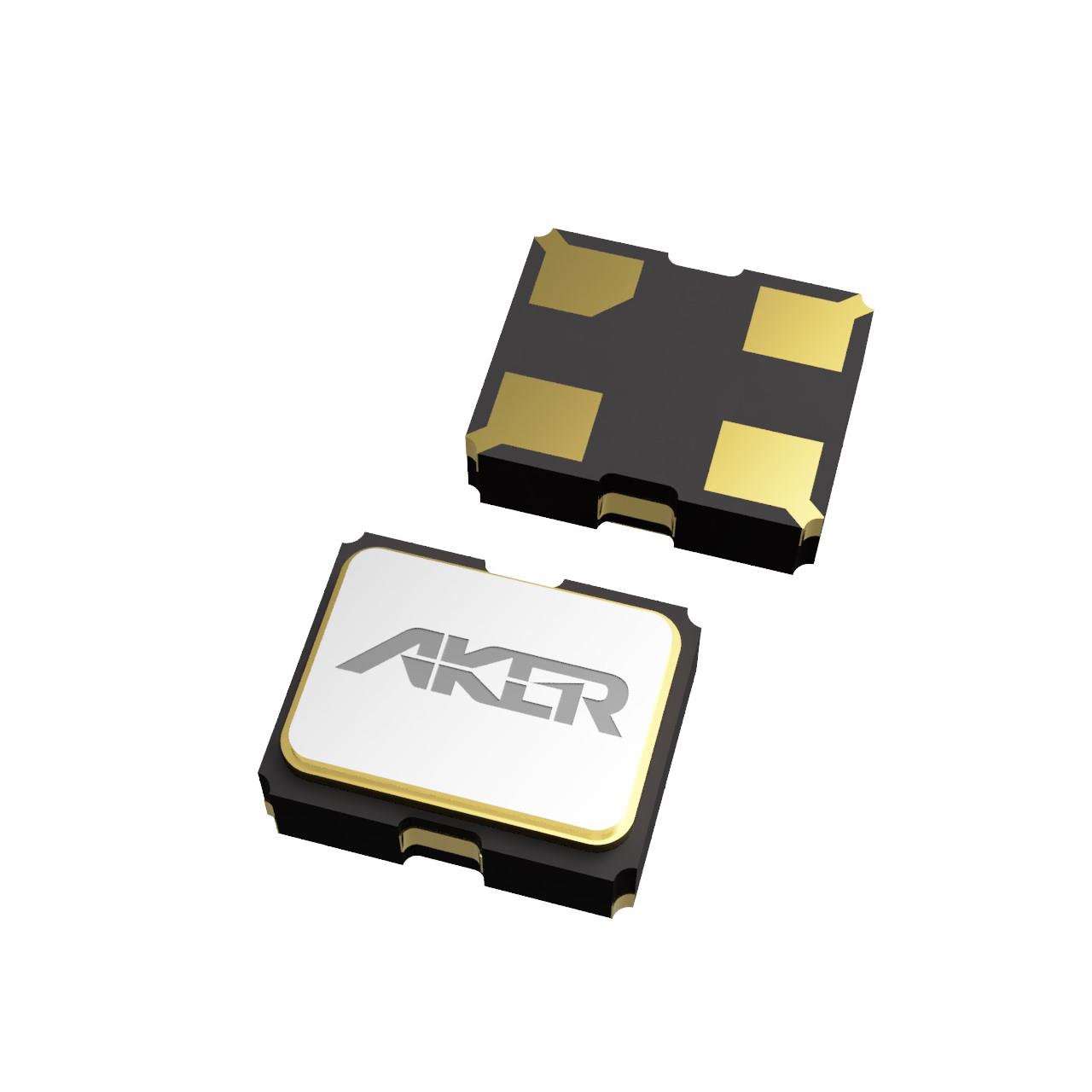

The TX22-M010S-16.368-X-M is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Aker Technology Corp, operating at a nominal frequency of 16.368 MHz. It delivers a clipped sine wave output signal and functions within a supply voltage range of 1.68V to 3.63V. The component utilizes a compact 4-SMD, No Lead package with a maximum seated height of 0.037 inches (0.95mm). It supports an operating temperature range from -40°C to +85°C and maintains a typical frequency stability of ±1ppm over the specified temperature range.

Oscillators Feature Summary

• Temperature compensated crystal oscillator design ensures precise frequency reference maintenance across varying thermal conditions.
• Ultra-miniature surface-mount form factor facilitates integration into space-constrained electronic assemblies.
• Low current consumption profile supports extended battery life in portable and mobile device applications.

Oscillators Applications

• Global Positioning System (GPS) modules
• Automotive Advanced Driver Assistance Systems (ADAS)
• Wireless communication infrastructure equipment

Oscillators Procurement Notes

Verify that the specific suffix 'M' corresponds to the required tape and reel packaging configuration, as distributor listings may vary between bulk and reel formats. Confirm the exact frequency tolerance specification for your application environment, as standard values may differ based on production lot or specific order requirements. Ensure compatibility with the 1.68V to 3.63V supply rail before finalizing procurement.

Oscillators Selection Notes

Select this component when a stable 16.368 MHz reference is required in a minimal footprint. The clipped sine wave output is suitable for digital logic interfaces without additional buffering. Consider the ±1ppm stability requirement against your system's timing budget. The wide supply voltage range allows flexibility in power management design, while the low operating current aids in meeting strict power efficiency targets for mobile implementations.

Oscillators Part Context

This part belongs to Aker Technology's TX22 series of ultra-miniature TCXOs. The series is engineered for high-volume consumer and automotive electronics where size and performance are critical. Similar models in the lineup offer different frequencies and output types, but share the same compact SMD package and general electrical characteristics, ensuring consistent mechanical integration across designs.

Oscillators Replacement Considerations

Cross-reference with other Aker Technology TCXOs in the TX22 series for alternative frequencies. Verify pinout compatibility if substituting with oscillators from other manufacturers. Ensure the replacement device supports the same clipped sine wave output format and voltage range to maintain circuit functionality without redesign.

Oscillators FAQ

What is the output waveform type for this oscillator?

The TX22-M010S-16.368-X-M provides a clipped sine wave output signal.

Does this component support voltage control?

No, this model is a fixed-frequency TCXO and does not include a voltage control input for frequency adjustment.
