TX22-M010S-38.400-X-R

Oscillators Overview

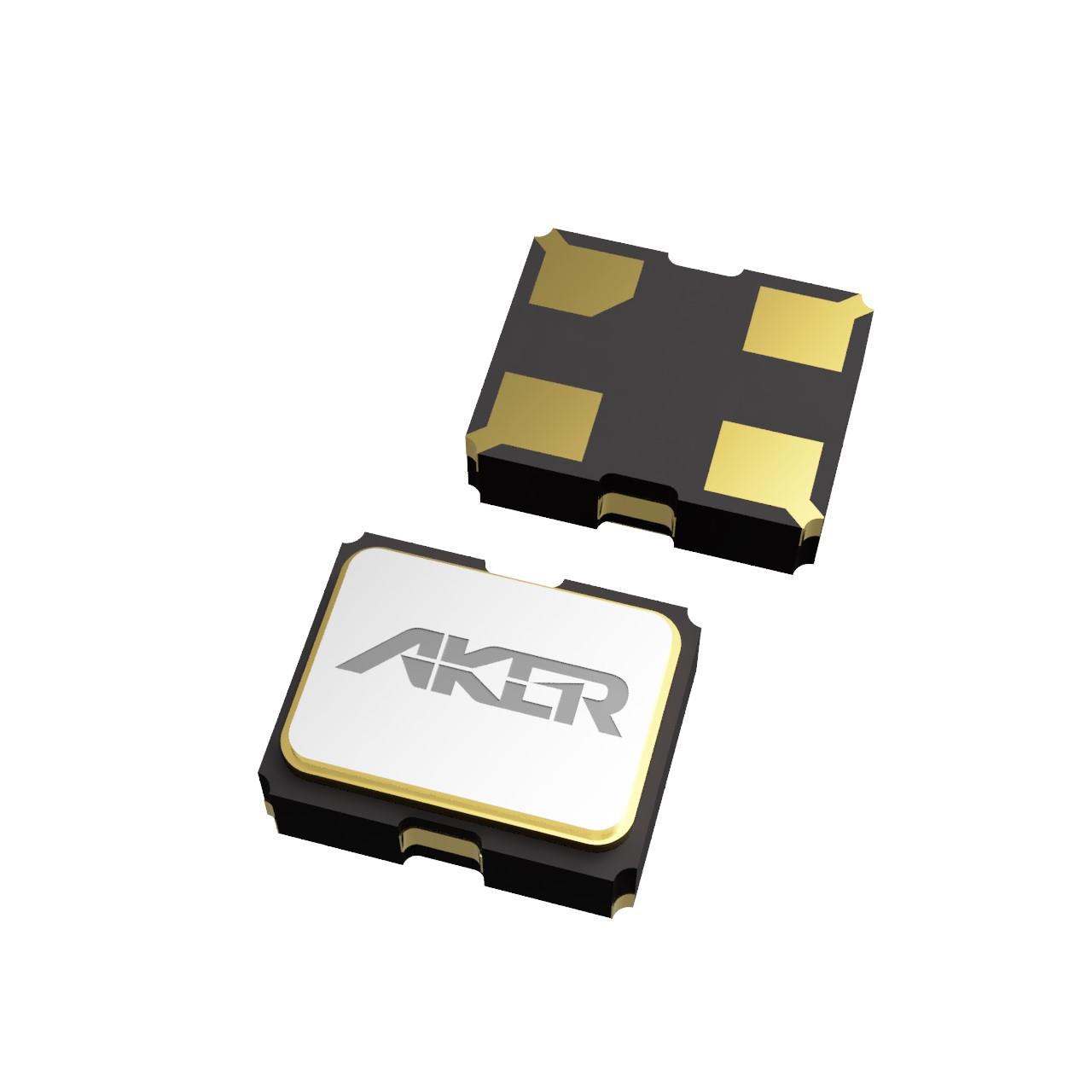

The TX22-M010S-38.400-X-R is a temperature-compensated crystal oscillator (TCXO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 38.4 MHz with a clipped sine wave output. The device supports a supply voltage range of 1.68V to 3.63V and features a frequency stability of ±1ppm. It is housed in a compact 4-SMD, no-lead package with dimensions of 2.00mm x 1.60mm. The component is designed for surface-mount assembly and functions within an operating temperature range of -40°C to 85°C.

Oscillators Feature Summary

• Temperature compensation ensures high frequency stability across varying thermal conditions
• Ultra-miniature surface-mount package design facilitates space-constrained layouts
• Wide supply voltage compatibility supports diverse low-power system architectures

Oscillators Applications

• Automotive electronics including ADAS and GPS modules
• Telecommunications infrastructure equipment
• Portable consumer devices requiring precise timing

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct voltage and stability specifications. Confirm that the 4-SMD no-lead package footprint matches the target PCB design. Check for RoHS compliance status if required by project standards. Ensure the supplier provides valid traceability documents for automotive or industrial applications.

Oscillators Selection Notes

Select this component when tight frequency stability is critical in environments with significant temperature fluctuations. The clipped sine wave output is suitable for digital logic interfaces without additional buffering. Consider the wide input voltage range for systems with variable power rails. Evaluate the small form factor against available board space constraints.

Oscillators Part Context

This oscillator belongs to Aker Technology's TCXO family, which focuses on providing stable timing solutions for global electronics industries. The brand has specialized in frequency control products since 1990, serving sectors such as automotive, telecommunications, and data storage. This specific model represents their ultra-miniature series designed for modern compact electronic devices.

Oscillators Replacement Considerations

Cross-reference competitor parts using virtual engineering tools to verify pinout and electrical compatibility. Ensure substitute components meet the same ±1ppm stability requirement and operate within the specified voltage and temperature ranges.
