TX22ED-12010S-19.200-X-R

Oscillators Overview

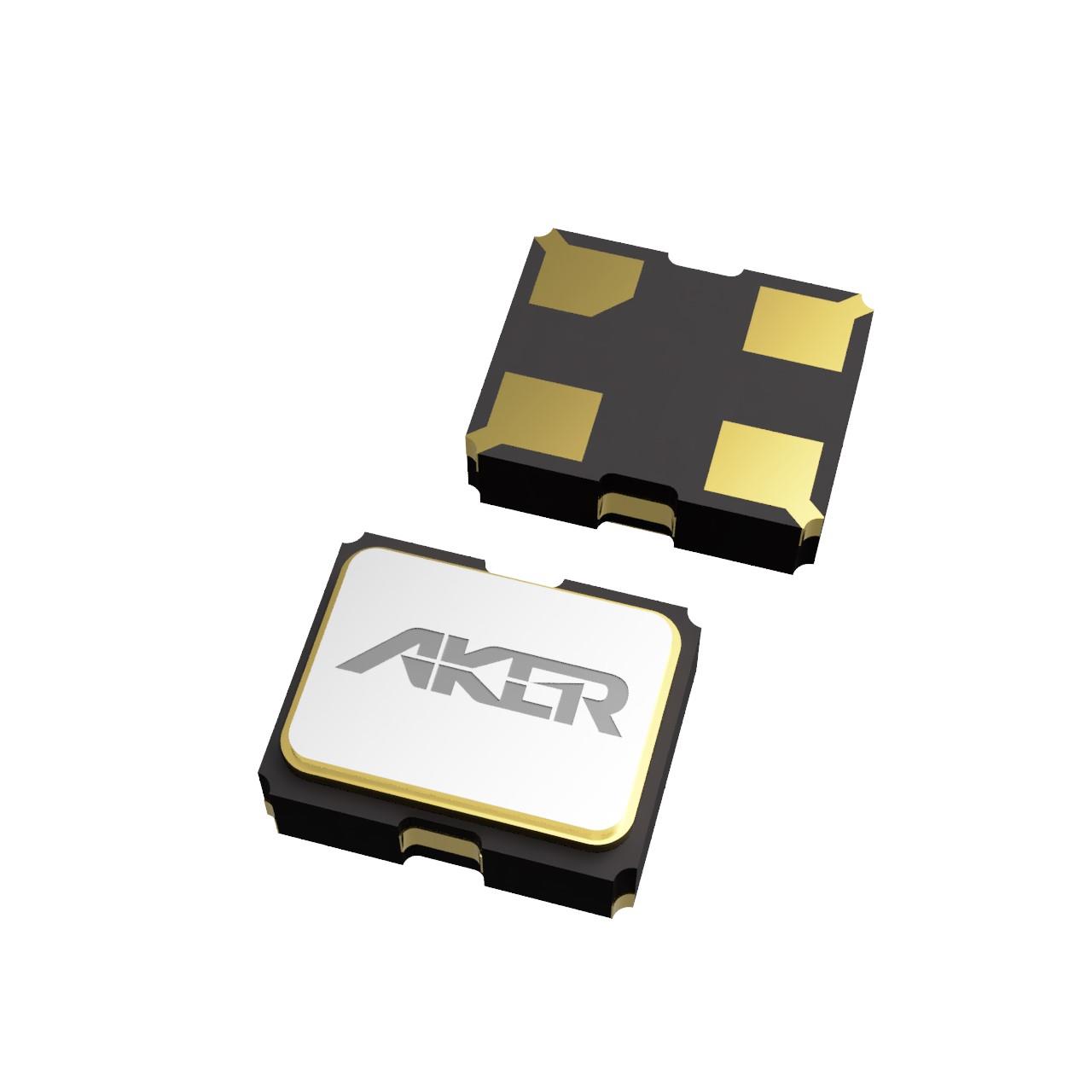

The TX22ED-12010S-19.200-X-R is a temperature-compensated crystal oscillator (TCXO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 19.2 MHz with a clipped sine wave output signal. The device utilizes a +1.2 VDC supply voltage and features an enable/disable control function. It provides a temperature stability of ±1 ppm across the operating range of -40°C to +85°C. The component is housed in a compact 4-SMD, no-lead package measuring 2.50mm x 2.00mm with a maximum seated height of 0.95mm.

Oscillators Feature Summary

• Ultra-miniature surface-mount design suitable for space-constrained applications
• Low power consumption with 1.2V supply and enable/disable functionality
• High frequency stability of ±1ppm over extended industrial temperature ranges

Oscillators Applications

• GPS navigation systems
• Automotive ADAS components
• IoT devices requiring low-power timing
• Telecommunications equipment

Oscillators Procurement Notes

Verify that the specific ordering suffix matches the required frequency and stability parameters. Confirm the package type is 4-SMD No Lead. Ensure the supply voltage aligns with the 1.2V specification. Check the enable/disable pin configuration against the circuit design. Validate the temperature range requirements for the intended environment.

Oscillators Selection Notes

Select this component when tight frequency stability is critical within a small form factor. The 1.2V supply makes it suitable for battery-powered or low-voltage logic systems. Consider the clipped sine wave output compatibility with downstream CMOS inputs. Evaluate the thermal performance requirements against the -40°C to +85°C operational range.

Oscillators Part Context

This part belongs to the TX22ED series from Aker Technology Corp, which specializes in ultra-miniature oscillators. The series includes various frequencies and stability grades. Similar parts in the family include different frequency options like 26MHz and 40MHz, maintaining the same package and voltage characteristics.

Oscillators Replacement Considerations

Direct substitutes may include other models within the TX22ED series with matching frequency and stability. Cross-reference competitor TCXOs with identical 2.5x2.0mm packages and 1.2V operation. Verify pinout compatibility before substitution.
