TX22ED-12010S-26.000-X-R

Oscillators Overview

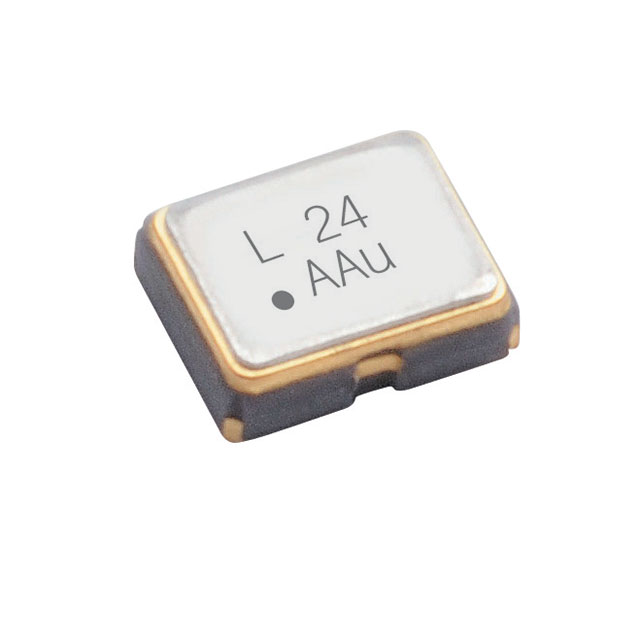

The TX22ED-12010S-26.000-X-R is a temperature-compensated crystal oscillator (TCXO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 26 MHz with a clipped sine wave output signal. The device requires a +1.2 VDC supply voltage and features an enable/disable control function. It exhibits a frequency stability of ±1 ppm over the operating temperature range of -40°C to +85°C. The maximum supply current is 2.5 mA. The component is housed in a compact 4-SMD, no-lead package with dimensions of 2.50 mm x 2.00 mm and a seated height of 0.95 mm.

Oscillators Feature Summary

• Temperature-compensated crystal oscillator design for stable frequency performance across varying thermal conditions.
• Integrated enable and disable functionality for power management control.
• Compact surface-mount package suitable for space-constrained electronic designs.

Oscillators Applications

• Portable consumer electronics requiring low-power clock sources
• Communication modules needing precise timing references
• Industrial control systems operating in wide temperature ranges

Oscillators Procurement Notes

Verify the specific part number against official Aker Technology Corp documentation to confirm electrical parameters and pinout configuration. Ensure that the supply voltage requirements align with the system design, as this model specifies a 1.2V operation. Confirm packaging details such as cut tape availability if required for assembly processes. Cross-reference datasheets for any updates regarding environmental compliance or reliability standards before finalizing procurement decisions.

Oscillators Selection Notes

Select this component when a small form factor TCXO with low supply voltage is required. The 1.2V supply and 2.5mA current draw make it suitable for battery-operated devices. The ±1 ppm stability ensures accuracy for applications sensitive to frequency drift. Consider the clipped sine wave output compatibility with downstream logic circuits. Verify that the operating temperature range meets the environmental demands of the target application.

Oscillators Part Context

This oscillator belongs to the TX22ED series from Aker Technology Corp, which offers various frequency and voltage options within a standardized 2.5 x 2.0 mm SMD footprint. The series provides consistent performance characteristics across different models, allowing for flexible design integration while maintaining a uniform mechanical profile for PCB layout consistency.

Oscillators Replacement Considerations

Direct substitutes include other models within the TX22ED series with compatible frequencies and voltages, such as the TX22ED-12010S-40.000-X-R for different frequency needs. Ensure replacement parts maintain the same package dimensions and electrical specifications to guarantee board compatibility without redesign.
