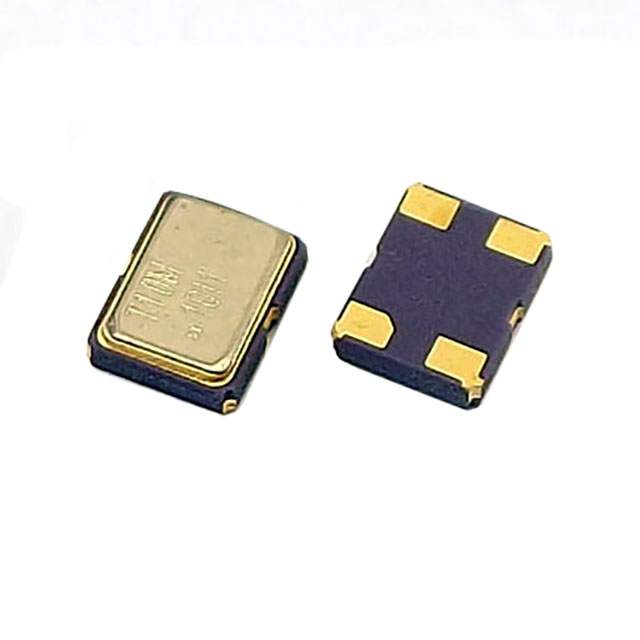

TX3-L25NR-40.000M is listed in the Oscillators range at ChipApex. The manufacturer field lists Transko Electronics, Inc.. Its product description is XTAL OSC TCXO 40.0000MHZ CMOS. Review the specifications below when checking this part for your BOM.
Oscillators specifications for TX3-L25NR-40.000M
- Description：XTAL OSC TCXO 40.0000MHZ CMOS
- Series：TX-L
- Mfr：Transko Electronics, Inc.
- Package：Strip
- Base Resonator：Crystal
- Type：TCXO
- Frequency：40 MHz
- Function：-
- Output：CMOS
- Voltage - Supply：3.3V
- Frequency Stability：±2.5ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-30°C ~ 75°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：6mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Supplier Device Package：4-VDFN (3.2x2.5)
Oscillators datasheet and documents for TX3-L25NR-40.000M
Oscillators Overview
The TX3-L25NR-40.000M is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 40.0000 MHz with CMOS output logic levels. The device is powered by a 3.3V supply and housed in an SMD3225-4P package, measuring 3.2mm x 2.5mm. It supports RoHS3 compliance and features a standard operating temperature range.
Oscillators Feature Summary
- Temperature compensation for enhanced frequency stability
- CMOS output signal compatibility
- Ultra-miniature surface-mount packaging
Oscillators Applications
- Telecommunications equipment requiring stable clock signals
- Portable electronic devices with space constraints
- Industrial control systems needing precise timing
Oscillators Procurement Notes
Verify the specific datasheet version for the TX3-L25NR-40.000M to confirm exact frequency tolerance and load capacitance requirements. Ensure that the 3.3V supply voltage aligns with the target circuit design. Confirm RoHS3 compliance status if environmental regulations are a strict constraint for the final assembly.
Oscillators Selection Notes
Select this component when a compact TCXO solution is required for 40 MHz applications. The CMOS output simplifies interface with digital logic circuits. Consider the SMD3225-4P footprint for PCB layout compatibility. Evaluate thermal performance within the specified operating temperature range to ensure long-term reliability.
Oscillators Part Context
This oscillator belongs to the TX3 series from Transko Electronics, Inc., which specializes in ultra-miniature SMD oscillators. The series includes various models with different frequencies and packages, catering to high-density electronics manufacturing needs. Transko is an ISO 9001 certified manufacturer with domestic production capabilities.
Oscillators Replacement Considerations
Check for direct substitutes within the TX3 series or other manufacturers offering 40 MHz TCXOs in the SMD3225-4P package. Verify pinout compatibility and electrical specifications before substitution.
