TX32-33010S-19.200-X-R

Oscillators Overview

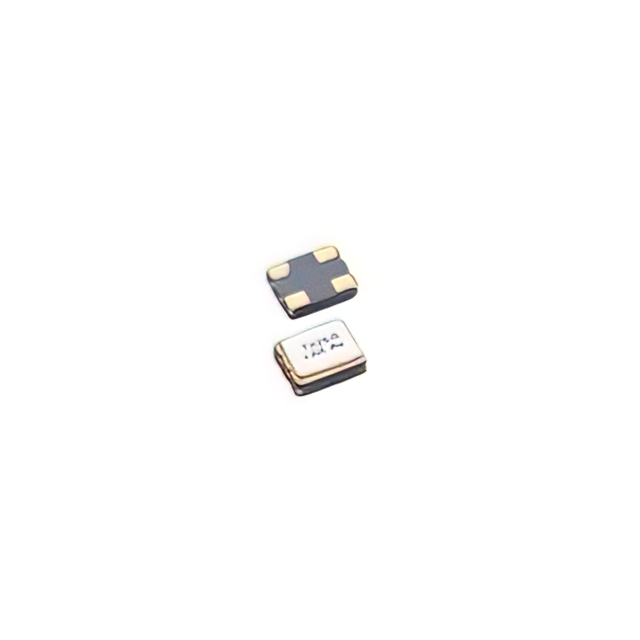

The TX32-33010S-19.200-X-R is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 19.2 MHz and utilizes a clipped sine wave output signal. The device is powered by a +3.3 VDC supply voltage and features a temperature stability of ±2.0 ppm. It is housed in a compact 4-SMD, No Lead surface-mount package with dimensions of 3.20mm x 2.50mm.

Oscillators Feature Summary

• Temperature compensated crystal oscillator design for stable frequency control
• Compact 4-SMD no-lead surface mount package
• Clipped sine wave output signal generation
• Operates on a 3.3V DC supply voltage

Oscillators Applications

• Microprocessor-based applications
• Telecommunications equipment
• Data storage and delivery systems
• Computer products
• Instrumentation and security systems

Oscillators Procurement Notes

Verify the specific suffix codes against official Aker Technology documentation to ensure correct configuration. Confirm that the required temperature stability and output waveform match the system requirements. Cross-reference the package dimensions with PCB layout constraints. Ensure the supply voltage aligns with the design specifications before procurement.

Oscillators Selection Notes

Select this component when a precise 19.2 MHz reference is needed with high thermal stability. The ±2.0 ppm specification suits applications requiring tight frequency tolerance over temperature variations. The small form factor allows integration into space-constrained designs. Verify compatibility with the host circuit's power supply and signal interface requirements.

Oscillators Part Context

This part belongs to the TX32 series from Aker Technology Corp, which offers ultra-miniature oscillators. The series includes various frequencies and supply voltages. The model number encodes key parameters: 33 indicates 3.3V supply, 010 denotes ±2.0 ppm stability, S signifies clipped sine wave, and 19.200 specifies the frequency.

Oscillators Replacement Considerations

Check for direct substitutes within the TX32 series such as TX32-33010S-19.200-M if different packaging or lead options are required. Ensure any replacement maintains the same frequency, voltage, and stability specifications.
