TX32-33020S-40.000-R

Oscillators Overview

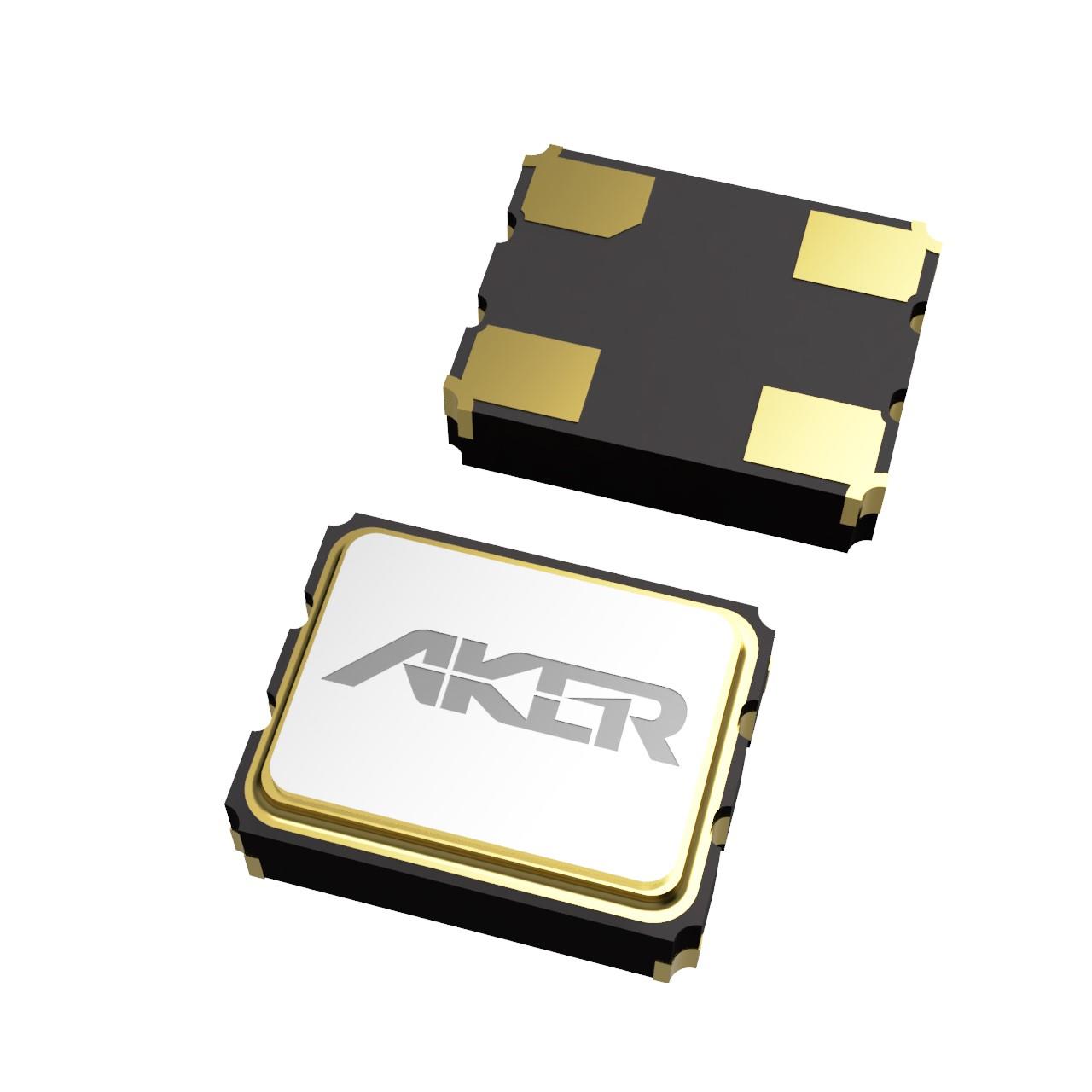

The TX32-33020S-40.000-R is a temperature-compensated crystal oscillator (TCXO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 40 MHz and delivers a clipped sine wave output signal. The device is designed for surface-mount installation within a compact 4-SMD, no-lead package. It functions with a supply voltage of 3.3V and provides high frequency stability across its operational range.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency performance over varying thermal conditions
• Compact surface-mount footprint suitable for space-constrained circuit designs
• Clipped sine wave output format compatible with standard digital logic interfaces

Oscillators Applications

• Telecommunications equipment requiring precise timing references
• Microprocessor-based systems needing stable clock sources
• Data storage and delivery devices utilizing synchronized data transfer

Oscillators Procurement Notes

Verify the specific suffix codes against official manufacturer documentation to confirm electrical characteristics and packaging details. Ensure compatibility with system voltage requirements and thermal operating ranges before integration. Cross-reference part numbers with authorized distributors to validate authenticity and sourcing channels.

Oscillators Selection Notes

Select this component when a stable 40 MHz reference is required in a low-profile surface-mount form factor. Consider the clipped sine wave output type for interface compatibility with downstream logic circuits. Evaluate the ±2ppm frequency stability specification against system jitter and phase noise requirements to ensure adequate performance margins.

Oscillators Part Context

This TCXO belongs to Aker Technology's line of precision oscillators established since 1990. The company specializes in frequency control solutions for automotive, telecommunications, and computer products. This specific model represents a standard offering for applications demanding reliable timing in compact electronic assemblies.

Oscillators Replacement Considerations

Consult official cross-reference guides or contact the manufacturer directly for verified substitute part numbers. Do not assume functional equivalence based solely on frequency and package dimensions without verifying electrical parameters and pin configurations.
