TX32-M010S-32.000-X-R

Oscillators Overview

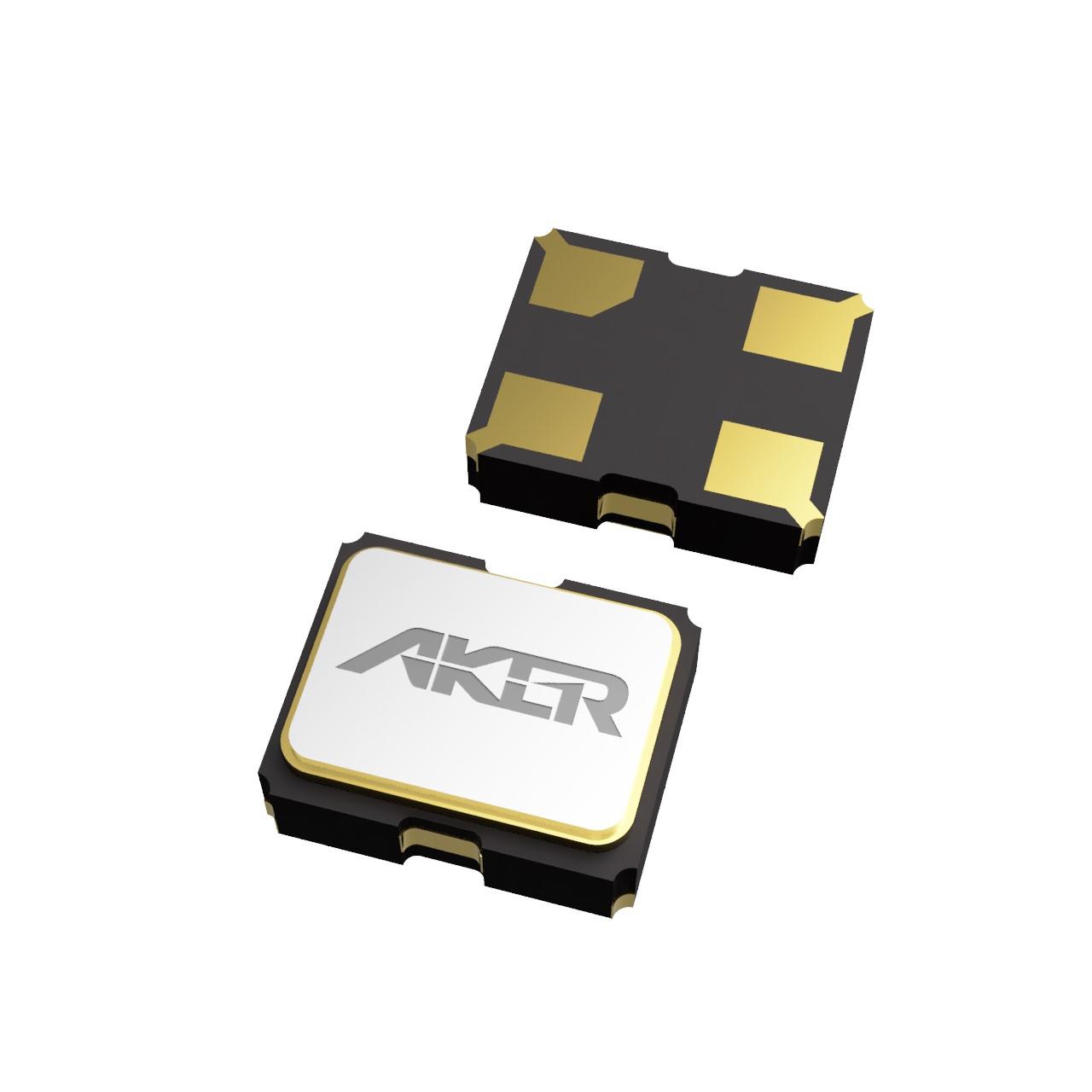

The TX32-M010S-32.000-X-R is a 32 MHz Temperature Compensated Crystal Oscillator (TCXO) manufactured by Aker Technology Corp. It operates within a supply voltage range of 1.68V to 3.63V and features a clipped sine wave output. The component utilizes a 4-SMD, No Lead package with surface mount installation. It is designed for applications requiring precise timing in environments with temperature variations.

Oscillators Feature Summary

• Temperature compensated crystal oscillator design for stable frequency performance
• Clipped sine wave output signal generation
• Ultra-miniature surface mount package configuration

Oscillators Applications

• Telecommunications equipment timing
• GPS navigation systems
• Automotive ADAS modules

Oscillators Procurement Notes

Verify the specific manufacturer designation on official documentation, as some distributor listings may incorrectly attribute this part number to Transko. Confirm the exact voltage range and output waveform specifications against the current Aker Technology datasheet before integration. Ensure the 4-SMD no-lead footprint matches the target PCB layout requirements.

Oscillators Selection Notes

Select this component when a low-profile TCXO is required for space-constrained designs. The clipped sine wave output is suitable for driving digital inputs or further conditioning stages. Verify that the operating voltage range of 1.68V to 3.63V aligns with the system power rails. Consider the thermal management requirements inherent to temperature-compensated oscillators in enclosed enclosures.

Oscillators Part Context

Aker Technology Corp specializes in frequency control solutions, including crystals and oscillators for automotive and industrial sectors. This model belongs to their ultra-miniature oscillator lineup, which emphasizes tight frequency stability across wide temperature changes. The company provides virtual engineering support for component selection and specification comparison.

Oscillators Replacement Considerations

Cross-reference with other Aker TCXO models in the same series for pin-compatible alternatives. Verify if competitor parts offer identical clipped sine wave outputs and similar voltage ranges. Check for any updates in the Aker product line that may supersede this specific variant.
