TX32ED-12010S-19.200-X-R

Oscillators Overview

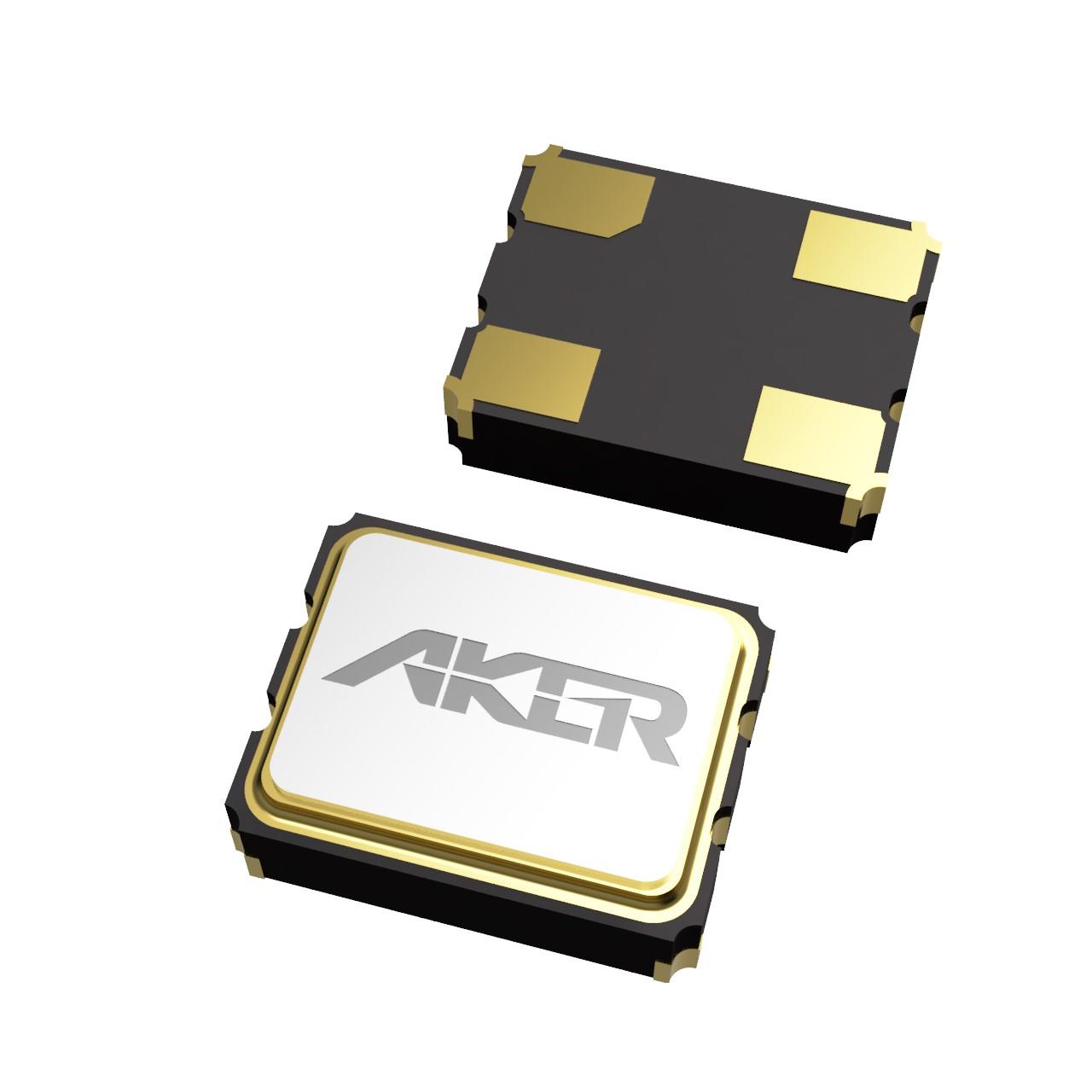

The TX32ED-12010S-19.200-X-R is a temperature-compensated crystal oscillator (TCXO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 19.2 MHz and utilizes a clipped sine wave output format. The device features a low supply voltage capability of 1.2V, which includes an enable/disable control function for power management. It is housed in a compact 4-SMD, no-lead package designed for surface-mount assembly. The unit exhibits a frequency stability of ±1ppm, ensuring precise timing performance across operating conditions.

Oscillators Feature Summary

• Integrated temperature compensation for stable frequency output
• Low voltage operation with dedicated enable/disable pin
• Compact surface-mount package design

Oscillators Applications

• Precision timing circuits requiring low power consumption
• Portable electronic devices with strict size constraints
• Communication systems utilizing 19.2 MHz reference clocks

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure compatibility with required voltage levels and packaging formats. Confirm that the 1.2V enable functionality aligns with system control logic. Cross-reference the 4-SMD no-lead footprint dimensions with PCB layout specifications to guarantee proper solder joint formation and mechanical reliability during assembly processes.

Oscillators Selection Notes

Select this component when a highly stable 19.2 MHz reference is required alongside minimal power usage. The integrated temperature compensation eliminates the need for external calibration in many applications. Ensure the host circuit supports the 1.2V logic levels for the enable pin. Consider the clipped sine wave output characteristics when designing downstream buffering stages to maintain signal integrity.

Oscillators Part Context

This oscillator belongs to the TX32ED series from Aker Technology Corp, which focuses on quartz-based frequency control products. The series is engineered for high-volume manufacturing and competitive performance in the global electronics market. Aker Technology emphasizes research and development to provide advanced solutions for various industrial and consumer applications requiring reliable timekeeping.

Oscillators Replacement Considerations

Direct substitutes within the same series include models such as TX32ED-12010S-32.000-X-R, though these operate at different frequencies. Verify pinout compatibility and electrical parameters before swapping components. No other part numbers are confirmed as direct replacements based on available public data.
