TX8-N05OP-26.000M-TR

Oscillators Overview

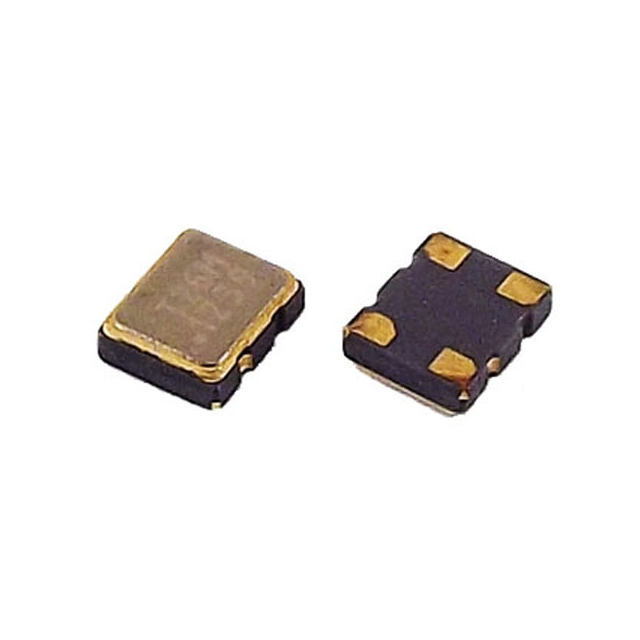

The TX8-N05OP-26.000M-TR is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 26 MHz and delivers a clipped sine wave output signal. The device is designed for low-voltage applications with a supply voltage of 1.8V. It features high frequency stability of ±0.5ppm and supports an extended operating temperature range from -30°C to +85°C. The component is housed in a compact 4-SMD, No Lead package, suitable for surface-mount assembly.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency output across varying thermal conditions
• Low voltage operation optimized for power-efficient electronic systems
• Compact surface-mount package design facilitates automated PCB assembly

Oscillators Applications

• Wireless communication modules requiring precise clock signals
• Portable consumer electronics with limited power budgets
• Industrial control systems operating in variable temperature environments

Oscillators Procurement Notes

Verify the specific ordering suffix matches the required tape-and-reel configuration for automated manufacturing processes. Confirm that the 1.8V supply requirement aligns with the target system's power rails. Ensure the clipped sine wave output compatibility exists with the receiving circuitry input thresholds. Validate the 4-SMD footprint dimensions against the printed board layout specifications prior to procurement.

Oscillators Selection Notes

Select this component when high frequency stability is critical within a constrained power envelope. The TCXO architecture provides superior performance compared to standard crystal oscillators in thermally dynamic environments. Consider the clipped sine wave output format for direct interfacing with digital logic inputs without additional buffering. Evaluate the -30°C to +85°C range against the operational environment requirements.

Oscillators Part Context

This oscillator belongs to the TX8 series of temperature-compensated devices from Transko Electronics. The series focuses on miniaturized solutions for modern embedded applications. The TR suffix indicates a specific packaging variant intended for high-volume surface-mount production lines. This model represents a specialized solution for maintaining timing accuracy in mobile and industrial sectors.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical parameters if considering alternative manufacturers. Ensure any replacement maintains the 1.8V supply and 26 MHz frequency requirements.
