TX8111NL

$1.57

Description：CMC 51UH 2LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:61037cc2ad46 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 51UH 2LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tube
Filter Type：-
Number of Lines：2
Current Rating (Max)：-
DC Resistance (DCR) (Max)：200mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.248" L x 0.260" W (6.30mm x 6.60mm)
Height (Max)：0.161" (4.10mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：51 µH @ 100 kHz
Impedance @ Frequency：-

Download product information

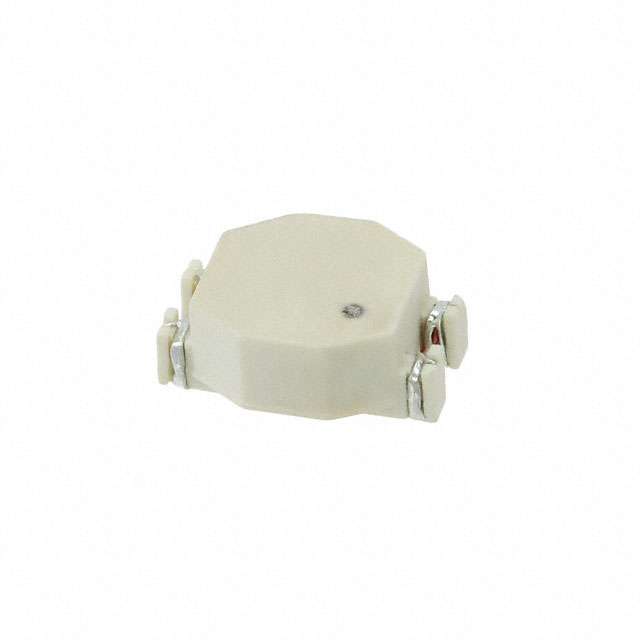

TX8111NL

Overview

The TX8111NL is a surface-mount common mode choke from the Pulse Electronics SHASTA series. It features two lines with an inductance of 51 µH at 100 kHz and a maximum DC resistance of 200 mOhms. The component operates within a temperature range of -40°C to +85°C and utilizes SMD/SMT termination for PCB mounting.

Feature Summary

Provides electromagnetic interference suppression through common mode filtering capabilities
Designed for surface mount technology integration onto printed circuit boards
Constructed as a dual-line component for balanced signal path protection

Applications

Data line filtering in electronic circuits
EMI suppression in signal transmission paths
Common mode noise reduction in high-speed data interfaces

Procurement Notes

Verify the specific manufacturer part number against official Pulse Electronics documentation to ensure accuracy. Confirm that the required package dimensions and electrical specifications match the design requirements before procurement. Ensure compliance with relevant environmental standards such as RoHS if applicable to the target application.

Selection Notes

Select this component based on its 51 µH inductance value and low DC resistance characteristics suitable for specific current handling needs. Consider the physical footprint constraints of the PCB layout when choosing between reel or tube packaging options available for this series.

Part Context

This component belongs to the SHASTA series of surface-mount common mode chokes manufactured by Pulse Electronics. The series is designed for compact electronic applications requiring effective EMI filtering in a small form factor, utilizing standard SMD termination methods for automated assembly processes.

Replacement Considerations

Consult official distributor databases for verified substitute part numbers from the same manufacturer family. Ensure any replacement maintains identical inductance values, current ratings, and physical dimensions to guarantee compatibility with existing board layouts.
