TXETDDJAYF-24.000000

Oscillators Overview

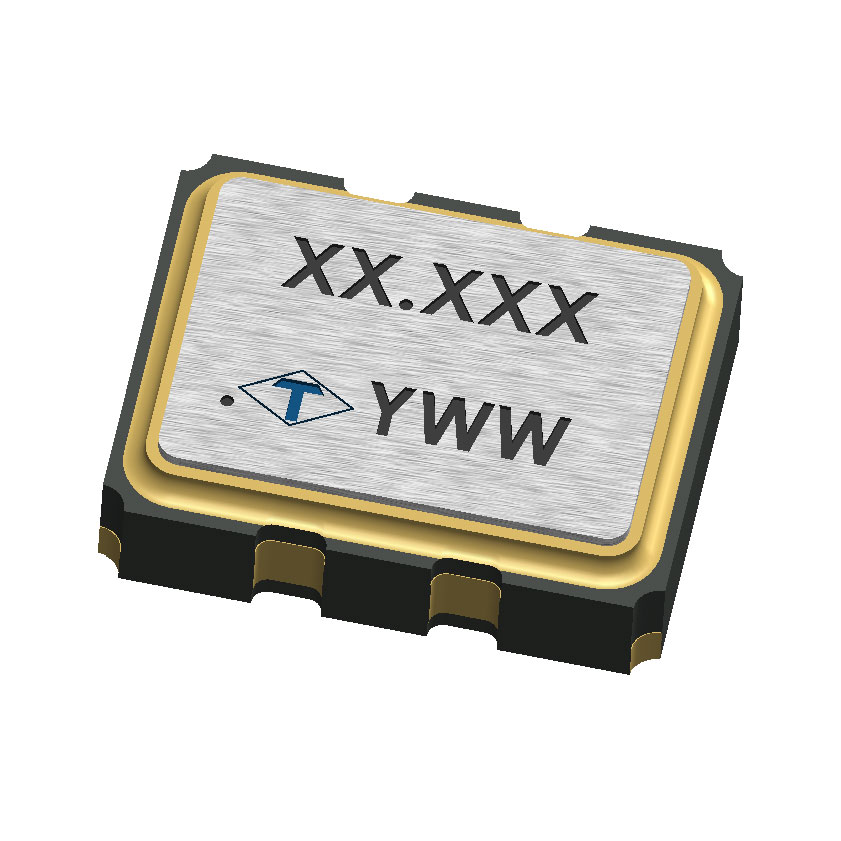

The Taitien TXETDDJAYF-24.000000 is a temperature-compensated crystal oscillator (TCXO) operating at a nominal frequency of 24.000000 MHz. It utilizes LVCMOS output logic and functions within a supply voltage range of 2.8V to 3.3V. The device features an enable/disable control function for power management. It is housed in a compact 4-SMD, No Lead surface-mount package suitable for automated assembly.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency performance across varying thermal conditions
• Integrated enable and disable pin functionality allows for active power state control
• LVCMOS output interface provides standard digital signal compatibility

Oscillators Applications

• Precision timing circuits requiring thermal stability
• Embedded systems with power management requirements
• Communication modules utilizing 24 MHz clock references

Oscillators Procurement Notes

Verify the specific supply voltage tolerance and load capacitance requirements against the target circuit design before integration. Confirm that the LVCMOS output swing aligns with the receiving component's input thresholds. Ensure the PCB footprint matches the 4-SMD No Lead package dimensions specified in the official mechanical drawing to prevent soldering defects during reflow processes.

Oscillators Selection Notes

Select this component when a stable 24 MHz reference is required under fluctuating temperature environments. The integrated TCXO architecture eliminates the need for external compensation networks. Consider the enable/disable feature if system power efficiency is a priority. Verify that the 2.8V to 3.3V operating range matches the available power rails in the application design.

Oscillators Part Context

This part belongs to Taitien's TCXO series, designed for applications demanding higher frequency stability than standard XO oscillators. The manufacturer specializes in quartz frequency control products, including crystals, resonators, and various oscillator types. This specific model represents a solution for mid-range precision timing needs where environmental temperature variations could otherwise degrade system performance.

Oscillators Replacement Considerations

Direct substitutes must match the 24 MHz frequency, TCXO type, LVCMOS output, and 4-SMD package. Verify equivalent frequency stability specifications and supply voltage ranges. Cross-reference pinout configurations to ensure functional compatibility without circuit redesign.
