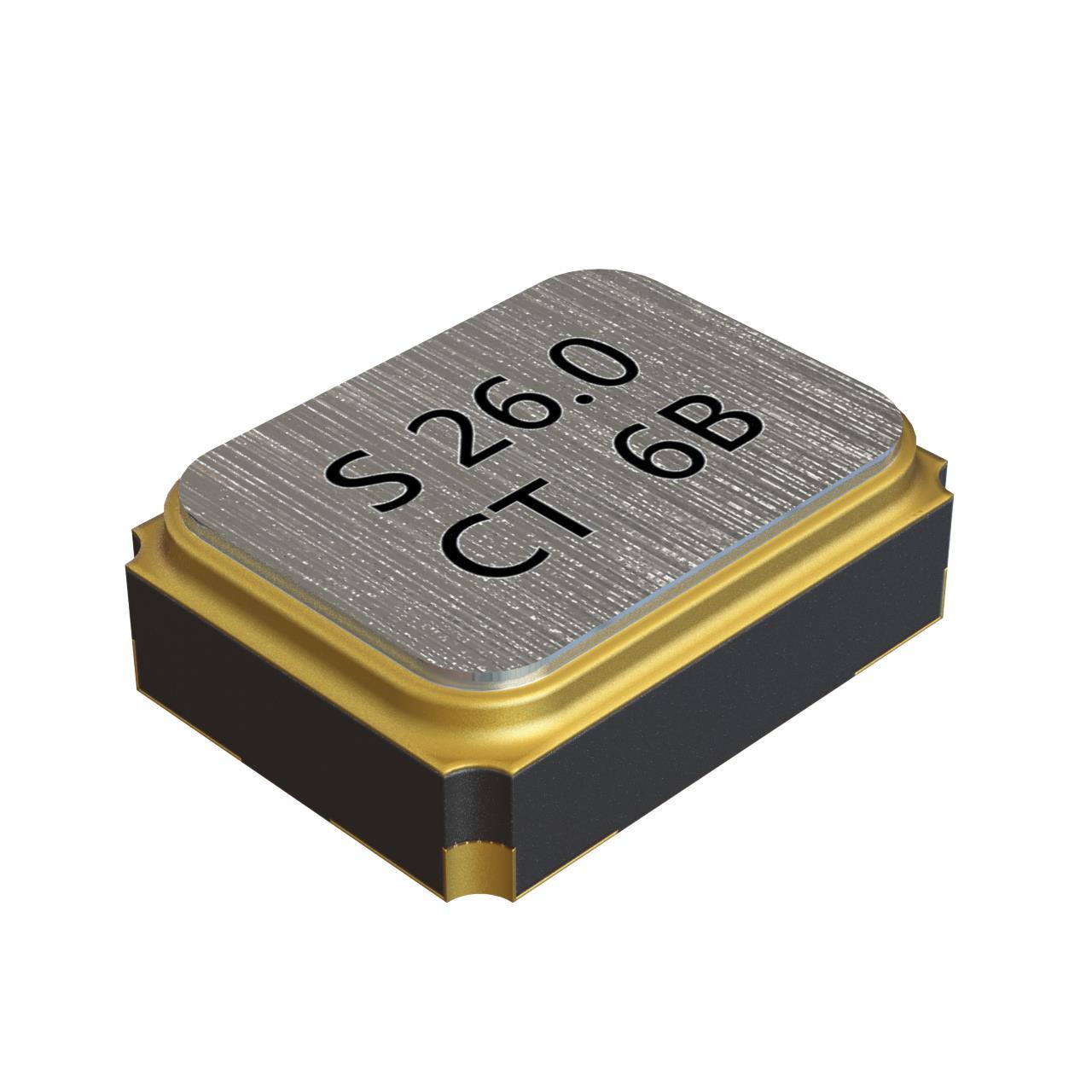

TXO012005-STO-5278

Oscillators Overview

The TXO012005-STO-5278 is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Siward. It operates at a nominal frequency of 26 MHz and utilizes a clipped sine wave output signal. The device is designed for low-power applications, featuring a maximum supply current of 1.5 mA and an operating voltage of 1.2 V. Frequency stability is specified at ±500 ppb. The component is housed in a compact 4-SMD, no-lead package and supports tape-and-reel packaging. It functions within a temperature range of -30°C to 85°C.

Oscillators Feature Summary

• Built-in characteristic circuit compensates for temperature variations to maintain high frequency stability across wide operating ranges.
• Compact 4-SMD no-lead package design suitable for space-constrained surface-mount applications.
• Low power consumption profile with 1.2V operation and 1.5mA maximum supply current.

Oscillators Applications

• IoT devices
• GNSS/GPS systems
• 5G telecommunications infrastructure

Oscillators Procurement Notes

Verify the specific ordering suffix against official Siward documentation to ensure correct frequency and package configuration. Confirm that the required output waveform matches the clipped sine wave specification provided for this part number. Check availability of tape-and-reel packaging if automated assembly is intended. Ensure environmental ratings meet the operational temperature requirements of the target application.

Oscillators Selection Notes

Select this TCXO when high frequency stability is required in a miniature form factor. The 1.2V supply voltage makes it suitable for battery-powered or low-voltage logic environments. Consider the clipped sine wave output compatibility with downstream receiver circuits. Verify that the ±500 ppb stability meets system timing accuracy requirements under varying thermal conditions.

Oscillators Part Context

This component belongs to the TXO01 series of oscillators from Siward. Siward specializes in quartz frequency control components, including TCXOs, VCXOs, and crystals. The company focuses on providing high-precision timing solutions for mobile communications, automotive, and industrial markets. This specific model represents their offering in the low-voltage, high-stability oscillator segment.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Siward channels for cross-reference information or compatible alternatives within the TXO01 series.
