TXZ-K10KP-10.000M-TR

Oscillators Overview

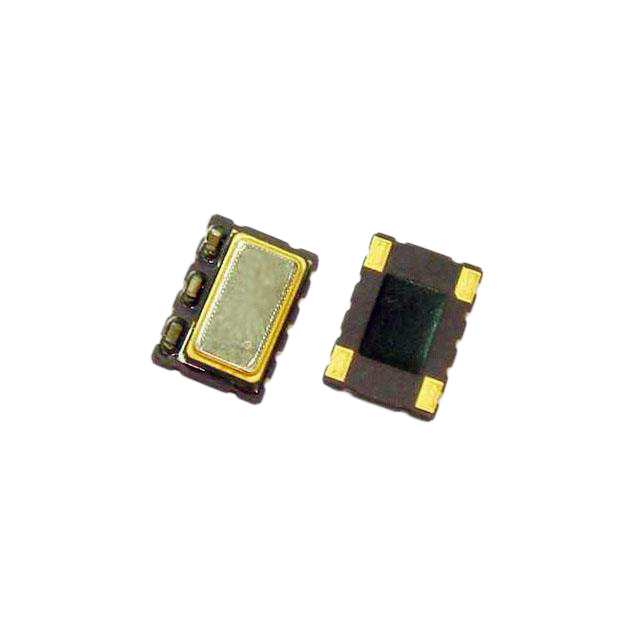

The TXZ-K10KP-10.000M-TR is a temperature-compensated crystal oscillator (TCXO) manufactured by Transko Electronics, Inc. It operates at a nominal frequency of 10 MHz and delivers a clipped sine wave output signal. The device requires a supply voltage of 3.3V and exhibits a frequency stability of ±1 ppm. It is designed for operation within an industrial temperature range of -20°C to +70°C. The component is housed in a compact 4-SMD, no-lead package with dimensions of 5x7 mm, suitable for surface-mount assembly.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency performance across varying thermal conditions
• Compact surface-mount package design facilitates automated PCB assembly
• Clipped sine wave output provides defined signal transitions for digital interfaces

Oscillators Applications

• Telecommunications equipment requiring precise clock synchronization
• Frequency synthesizer reference sources
• Test and measurement instrumentation

Oscillators Procurement Notes

Verify the specific operating temperature range (-20°C to +70°C) against application requirements prior to ordering. Confirm that the clipped sine wave output interface is compatible with the receiving circuitry input specifications. Ensure the 3.3V supply voltage aligns with the system power architecture. Validate the 4-SMD footprint dimensions during the layout phase to prevent mechanical interference.

Oscillators Selection Notes

Select this component when a 10 MHz reference with ±1 ppm stability is required in a small form factor. Consider the clipped sine wave output type if the downstream logic accepts this waveform without additional buffering. Evaluate the -20°C to +70°C temperature range to ensure it meets the environmental constraints of the target deployment scenario compared to broader industrial or commercial alternatives.

Oscillators Part Context

This part belongs to the TXZ series of TCXOs from Transko Electronics, Inc., which focuses on frequency control products. The series utilizes quartz crystal technology to provide high-stability oscillation. The manufacturer maintains ISO9001:2008 certification and produces these components in Anaheim, California. The product line supports various frequencies and output types for diverse electronic applications.

Oscillators Replacement Considerations

The TXZ-S10KP-10.000M shares similar electrical characteristics but may differ in pin configuration or package height. Verify mechanical compatibility and exact parameter alignment before substitution.
