TYA201610100M-10

Fixed Inductors Overview

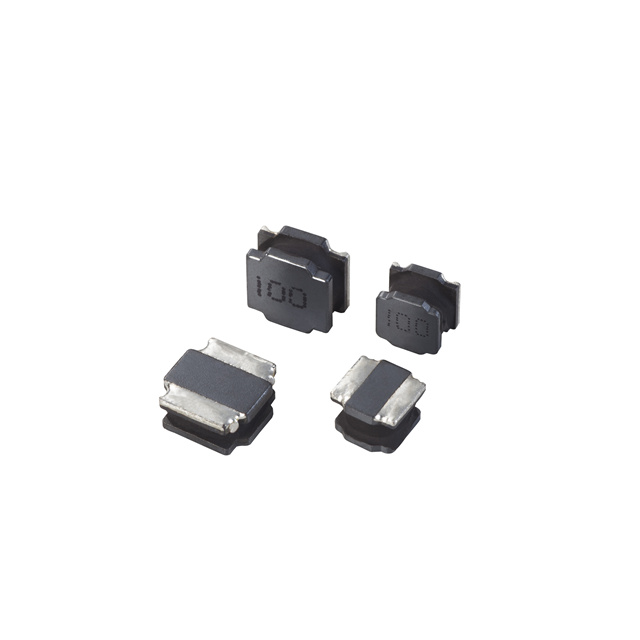

The TYA201610100M-10 is a fixed shielded drum core wirewound inductor from the Laird-Signal Integrity Products TYA2016 series. It features an inductance of 10 µH with a tolerance of ±20%. The component supports a maximum rated current of 600 mA and has a maximum DC resistance (DCR) of 875 mΩ. Designed for surface mount installation, it utilizes a 0806 (2016 Metric) package measuring 2.00mm x 1.60mm. The unit operates within a temperature range of -55°C to +125°C and meets AEC-Q200 automotive standards.

Fixed Inductors Feature Summary

• Shielded drum core construction minimizes external magnetic field interference
• Automotive-grade reliability compliant with AEC-Q200 qualification standards
• Compact 0806 surface mount footprint suitable for space-constrained designs

Fixed Inductors Applications

• Automotive electronic circuit filtering
• Power supply input/output stages
• Signal line noise suppression

Fixed Inductors Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm exact electrical tolerances and packaging configurations. Ensure that any ordering suffixes do not alter the fundamental functional parameters or material composition defined in the datasheet. Cross-reference part numbers with authorized distributors to confirm availability and authenticity before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component for applications requiring compact shielding and high reliability in automotive environments. The 10 µH value and 600 mA rating suit low-current power filtering tasks. Verify that the 875 mΩ DCR aligns with system efficiency requirements and that the 0806 package dimensions fit the target PCB layout constraints without compromising thermal performance.

Fixed Inductors Part Context

This inductor belongs to the TYA2016 series, which focuses on small-footprint shielded solutions. The series targets automotive and industrial sectors where space optimization and electromagnetic compatibility are critical. The drum core design offers a balance between inductance density and saturation characteristics compared to standard chip inductors.

Fixed Inductors Replacement Considerations

Consult official replacement guides for direct substitutes. Ensure alternative components match the 10 µH inductance, 600 mA current rating, and 0806 package dimensions. Verify that any replacement also holds AEC-Q200 certification if used in automotive applications.

Fixed Inductors FAQ

What is the saturation current rating for the TYA201610100M-10?

The provided documentation specifies a maximum rated current of 600 mA. Specific saturation current values should be verified in the official datasheet.

Is this component qualified for automotive use?

Yes, the component is listed as meeting AEC-Q200 standards, indicating qualification for automotive electronic applications.
