TYKTDDJAYF-50.000000

Oscillators Overview

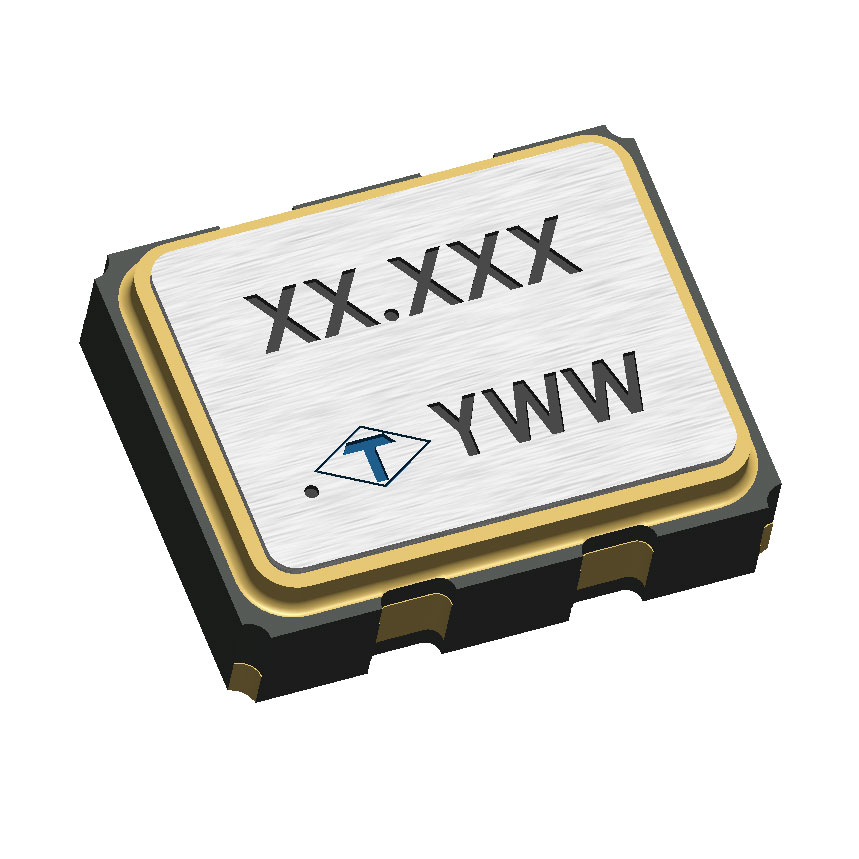

The Taitien TYKTDDJAYF-50.000000 is a Temperature Compensated Crystal Oscillator (TCXO) operating at a frequency of 50 MHz. It utilizes LVCMOS output logic and functions with a supply voltage of 1.8V. The device features an enable/disable control function for power management. It is housed in a compact 4-SMD, No Lead package designed for surface mount applications.

Oscillators Feature Summary

• Temperature compensated crystal oscillator technology
• Low voltage 1.8V operation capability
• LVCMOS output signal format
• Integrated enable and disable control function

Oscillators Applications

• Portable electronic devices requiring low power consumption
• Wireless communication modules
• Mobile phone baseband circuits
• Embedded systems with strict size constraints

Oscillators Procurement Notes

Verify the specific ordering suffix to confirm the exact package dimensions and tape/reel specifications required for your assembly line. Ensure that the 1.8V supply voltage aligns with your system's power architecture before finalizing the procurement order. Confirm RoHS compliance status if environmental regulations apply to your manufacturing process.

Oscillators Selection Notes

Select this component when a stable 50 MHz reference is needed in space-constrained designs powered by low voltage rails. The integrated temperature compensation eliminates the need for external calibration components. Consider the enable pin functionality if dynamic power saving is a critical requirement for the target application environment.

Oscillators Part Context

This part belongs to the Taitien TCXO series, which focuses on high-stability oscillators for portable electronics. The model number indicates a 50 MHz frequency, LVCMOS output, and 1.8V supply. It is distinct from standard XO or VCXO variants within the same product family.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative TCXO models based on pinout, voltage, and stability requirements.
