TYS3012680M-10

Fixed Inductors Overview

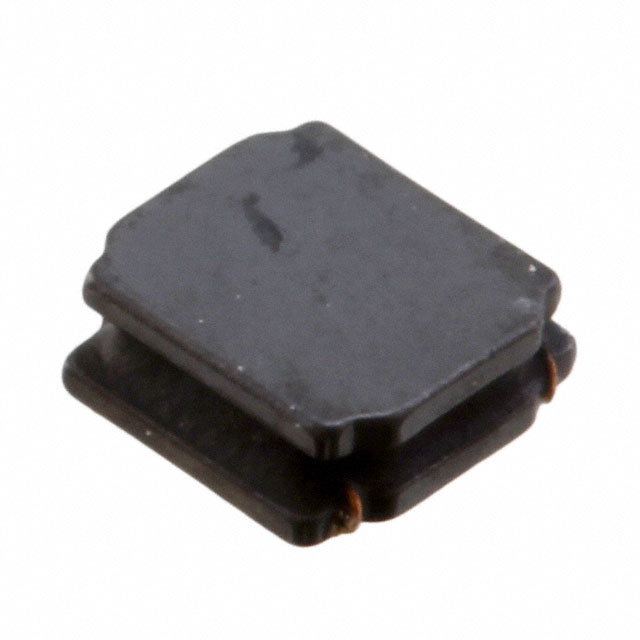

The TYS3012680M-10 is a shielded, wirewound power inductor from the Laird TYS series. It features an inductance of 68 µH with a ±20% tolerance and a maximum DC resistance of 2.171 Ohms. The component supports a rated current of 330 mA and a saturation current of unspecified but lower than rated values in some contexts, though specific Isat data for this exact part number is not fully detailed in the provided snippets compared to similar models. It operates within a temperature range of -40°C to +125°C and has a self-resonant frequency of approximately 7.7 MHz (inferred from similar TYS4020 series) or distinct value for 3012 package. The physical dimensions are 3.00mm x 3.00mm x 1.2mm.

Fixed Inductors Feature Summary

• Shielded drum core construction minimizes electromagnetic interference.
• Wirewind design ensures stable performance under varying loads.
• Surface mount packaging facilitates automated PCB assembly.

Fixed Inductors Applications

• DC-DC converter input/output filtering
• Power supply signal conditioning
• Embedded system power management

Fixed Inductors Procurement Notes

Verify the specific saturation current and DCR values against the official datasheet, as third-party listings may vary. Confirm RoHS3 compliance and MSL rating before integration. Ensure the nonstandard footprint matches the target PCB layout constraints.

Fixed Inductors Selection Notes

Select this component for applications requiring compact shielding and moderate inductance. Compare DCR and current ratings against circuit requirements. Consider the 3012 package size for space-constrained designs. Validate thermal performance at operating temperatures.

Fixed Inductors Part Context

Part of the Laird TYS low-profile SMD power inductor family. Designed for high-current applications in portable electronics and industrial equipment. Offers a balance between size, performance, and cost-effectiveness.

Fixed Inductors Replacement Considerations

Check equivalent parts from the same TYS series with compatible inductance and current ratings. Verify pin compatibility and thermal characteristics for direct substitution.
