TYS40125R6N-10 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Laird-Signal Integrity Products. Its product description is FIXED IND 5.6UH 1A 140 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for TYS40125R6N-10
- Description：FIXED IND 5.6UH 1A 140 MOHM SMD
- Series：TYS4012
- Mfr：Laird-Signal Integrity Products
- Package：Tape & Reel (TR)
- Type：Wirewound
- Material - Core：-
- Inductance：5.6 µH
- Tolerance：±30%
- Current Rating (Amps)：1:00 AM
- Current - Saturation (Isat)：1A
- Shielding：Shielded
- DC Resistance (DCR)：140mOhm
- Q @ Freq：-
- Frequency - Self Resonant：42MHz
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.157" L x 0.157" W (4.00mm x 4.00mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Features：-
Fixed Inductors datasheet and documents for TYS40125R6N-10
Fixed Inductors Overview

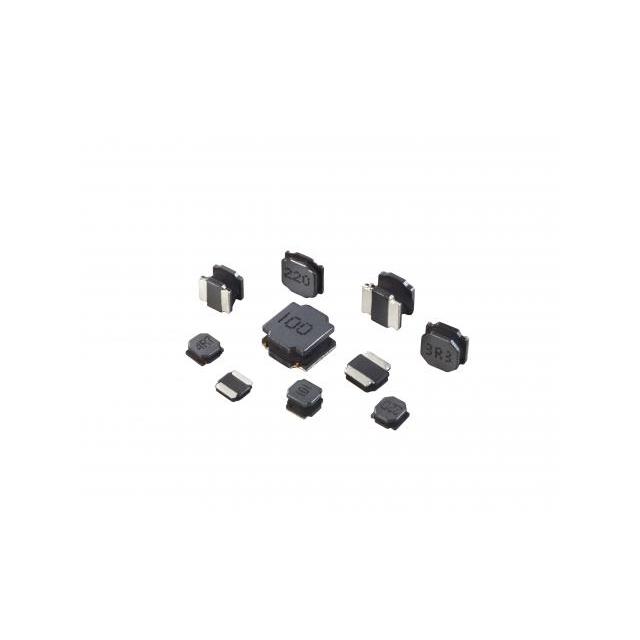

The TYS40125R6N-10 is a fixed surface-mount power inductor from the Laird-Signal Integrity Products TYS4012 series. It features a shielded construction with an inductance of 5.6 µH and a tolerance of ±20%. The component supports a rated current of 1 A and a saturation current (Isat) of 1.3 A, with a maximum DC resistance (DCR) of 140 mΩ. Designed for operation between -40°C and +125°C, it measures 4.00mm x 4.00mm x 1.00mm.
Fixed Inductors Feature Summary
- Shielded magnetic structure minimizes external electromagnetic interference.
- High saturation current capability ensures stable performance under load.
- Low DC resistance reduces power loss and heat generation.
Fixed Inductors Applications
- Point-of-load voltage regulation circuits
- DC-DC converter input and output filtering
- Portable electronic device power management
Fixed Inductors Procurement Notes
Verify the manufacturer part number against official Laird documentation to confirm specifications. Ensure the component meets RoHS3 compliance requirements for your assembly process. Confirm package dimensions and thermal characteristics match your PCB layout constraints before finalizing procurement.
Fixed Inductors Selection Notes
Select this component when a compact shielded inductor is required for high-current applications. The 5.6 µH value suits specific switching frequency designs. Verify that the 1.3 A saturation limit accommodates peak current demands without significant inductance drop.
Fixed Inductors Part Context
This part belongs to the TYS4012 series of low-profile SMD power inductors. The series offers various inductance values within a standardized 4.00mm x 4.00mm footprint. It is designed for automated surface-mount assembly processes.
Fixed Inductors Replacement Considerations
Direct substitutes include other Laird TYS4012 series variants with similar electrical parameters. Cross-manufacturer replacements require matching inductance, current ratings, and physical dimensions.
Fixed Inductors FAQ
What is the saturation current for this inductor?
The saturation current (Isat) is 1.3 A.
Does this component have a shielded design?
Yes, the TYS40125R6N-10 features a fully shielded magnetic structure.
