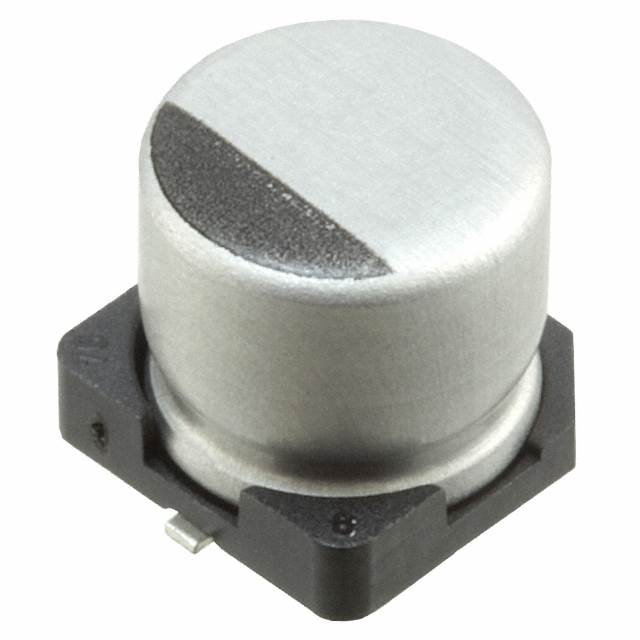

Aluminum Electrolytic Capacitors UCD1C560MCL1GS product image

UCD1C560MCL1GS

$0.11

Description：CAP ALUM 56UF 20% 16V SMD
Series：UCD
Mfr：Nichicon
Package：Tape & Reel (TR)

SKU:0f06fef25ecd Category: Aluminum Electrolytic Capacitors Brand: Nichicon

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UCD1C560MCL1GS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 56UF 20% 16V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UCD1C560MCL1GS

Description：CAP ALUM 56UF 20% 16V SMD
Series：UCD
Mfr：Nichicon
Package：Tape & Reel (TR)
Capacitance：56 µF
Tolerance：±20%
Voltage - Rated：16 V
ESR (Equivalent Series Resistance)：-
Lifetime @ Temp.：2000 Hrs @ 105°C
Operating Temperature：-55°C ~ 105°C
Polarization：Polar
Ratings：AEC-Q200
Applications：Automotive
Ripple Current @ Low Frequency：120 mA @ 120 Hz
Ripple Current @ High Frequency：240 mA @ 100 kHz
Lead Spacing：-
Size / Dimension：0.248" Dia (6.30mm)
Height - Seated (Max)：0.240" (6.10mm)
Surface Mount Land Size：0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type：Surface Mount
Package / Case：Radial, Can - SMD
Impedance：360 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for UCD1C560MCL1GS

UCD1C560MCL1GS
