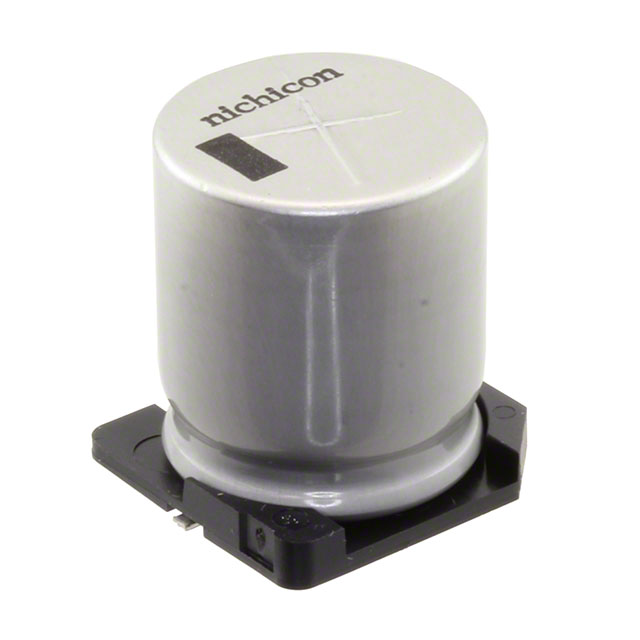

UCM1J122MNS1MS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 63V POLAR. Review the specifications below when checking this part for your BOM.
Aluminum Electrolytic Capacitors specifications for UCM1J122MNS1MS
- Description：CAP ALUM 63V POLAR
- Series：UCM
- Mfr：Nichicon
- Package：Tape & Reel (TR),Cut Tape (CT)
- Capacitance：1.2 mF
- Tolerance：±20%
- Voltage - Rated：63 V
- ESR (Equivalent Series Resistance)：-
- Lifetime @ Temp.：5000 Hrs @ 105°C
- Operating Temperature：-55°C ~ 105°C
- Polarization：Polar
- Ratings：AEC-Q200
- Applications：Automotive
- Ripple Current @ Low Frequency：1.215 A @ 120 Hz
- Ripple Current @ High Frequency：2.43 A @ 100 kHz
- Lead Spacing：-
- Size / Dimension：0.709" Dia (18.00mm)
- Height - Seated (Max)：0.886" (22.50mm)
- Surface Mount Land Size：0.752" L x 0.752" W (19.10mm x 19.10mm)
- Mounting Type：Surface Mount
- Package / Case：Radial, Can - SMD
- Impedance：54 mOhms
Aluminum Electrolytic Capacitors datasheet and documents for UCM1J122MNS1MS
