Product Detailed Parameters
- Description：COMMON MODE CHOKE SMD 700OHM 5A
- Series：-
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：-
- Number of Lines：-
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：-
- Size / Dimension：-
- Height (Max)：-
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Download product information
Overview

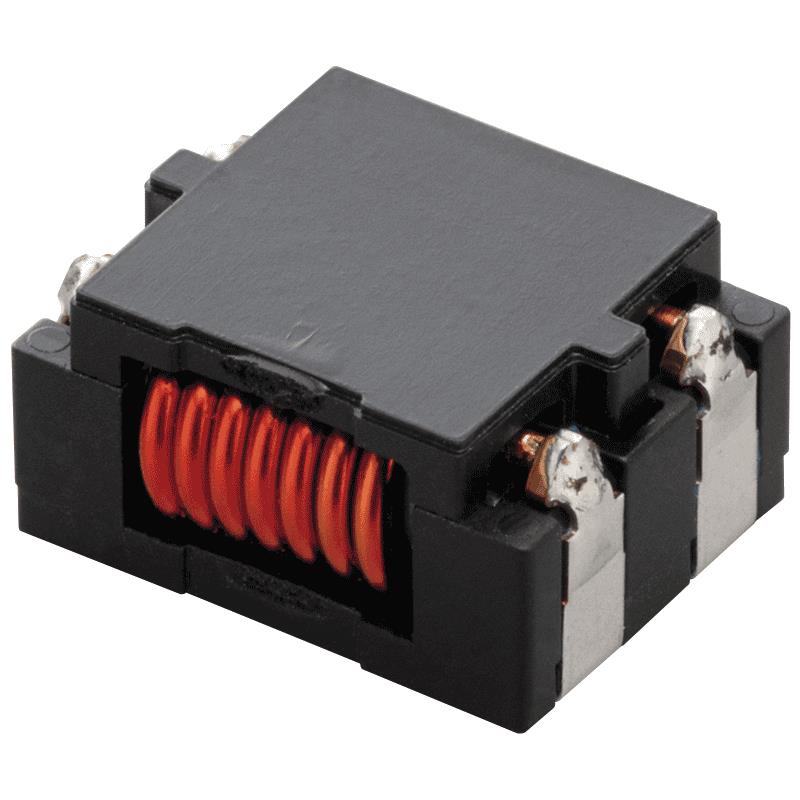

The Murata UCMH90-0001=P3 is an automotive-grade common mode choke coil designed for powertrain and safety equipment applications. It operates within a temperature range of -40°C to +150°C and meets AEC-Q200 qualification standards. The component features a surface-mount package with dimensions of 9 mm length, 7 mm width, and 4.7 mm height. Key electrical specifications include a maximum DC resistance of 0.01 ohms, a rated current of 5 A, and an impedance of 700 Ohms.
Feature Summary
- Provides excellent common-mode noise removal across a wide frequency band
- Qualified for harsh automotive environments under AEC-Q200 standards
- Engineered specifically for high-current powertrain and safety circuits
Applications
- Automotive powertrain systems
- Vehicle safety equipment circuits
- Power line filtering in automotive electronics
Procurement Notes
Verify the specific suffix and manufacturer part number against official Murata documentation to ensure correct impedance and current ratings. Confirm AEC-Q200 compliance requirements for your specific automotive application. Check for end-of-life status or recommended new design alternatives if sourcing for long-term production.
Selection Notes
Select this component when high current handling up to 5 A is required alongside effective noise suppression in automotive power lines. Ensure the operating temperature range covers the expected environmental conditions up to 150°C. Verify that the physical footprint fits the available PCB space constraints.
Part Context
This component belongs to the UCMH90 series of common mode chokes from Murata Electronics. The series is tailored for automotive grade applications requiring robust performance in powertrain and safety systems. It utilizes a surface-mount technology package suitable for automated assembly processes.
Replacement Considerations
Check Murata's official substitution guide for equivalent components within the UCMH series. Verify pin compatibility and electrical parameters before replacing. Consult distributor databases for cross-reference data.
