Product Detailed Parameters
- Description：CMC 1.2A 2LN TH
- Series：UF
- Mfr：TDK Corporation
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.2A
- DC Resistance (DCR) (Max)：250mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-20°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.669" W (18.00mm x 17.00mm)
- Height (Max)：0.610" (15.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

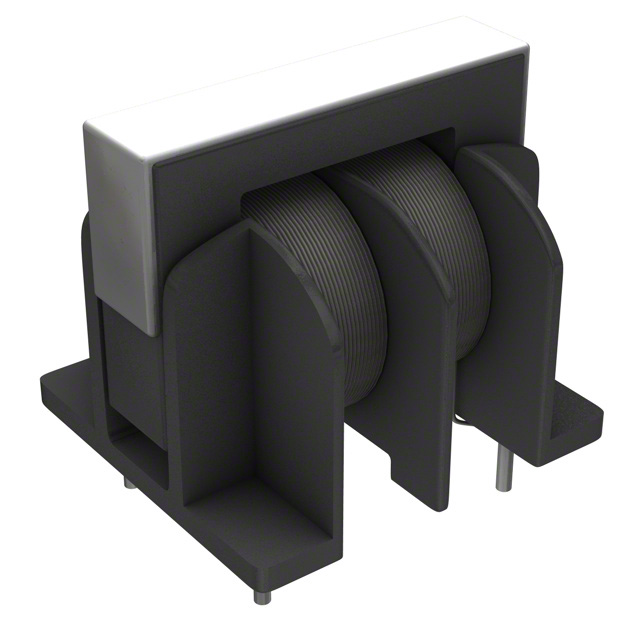

The TDK UF1815SG-281Y1R2-01 is a two-line common mode choke designed for power line filtering applications. It operates with a rated current of 1.2A and utilizes through-hole mounting technology. The component provides effective suppression of common-mode noise to enhance electromagnetic interference performance in electronic circuits.
Feature Summary
- Provides common-mode noise suppression for improved EMI performance
- Designed for power line filtering applications
- Utilizes through-hole mounting configuration
Applications
- Power line filtering
- Common-mode noise suppression
- EMI performance improvement
Procurement Notes
Verify the complete part number including suffixes against official TDK documentation to ensure correct specifications. Confirm that the through-hole package type matches your board layout requirements. Check for any specific handling instructions or environmental certifications required for your application before procurement.
Selection Notes
Select this component when designing circuits requiring common mode noise reduction on power lines. Ensure the 1.2A current rating meets your system's operational demands. Verify that the physical dimensions and through-hole pin configuration are compatible with your printed circuit board design constraints.
Part Context
This component belongs to TDK Corporation's range of passive electronic components, specifically within their common mode choke lineup. TDK manufactures various magnetic components for signal integrity and power management applications across industrial and consumer electronics sectors.
