UHD1110-FKA-CL1A13R3Q1BBQFMF3

$0.09

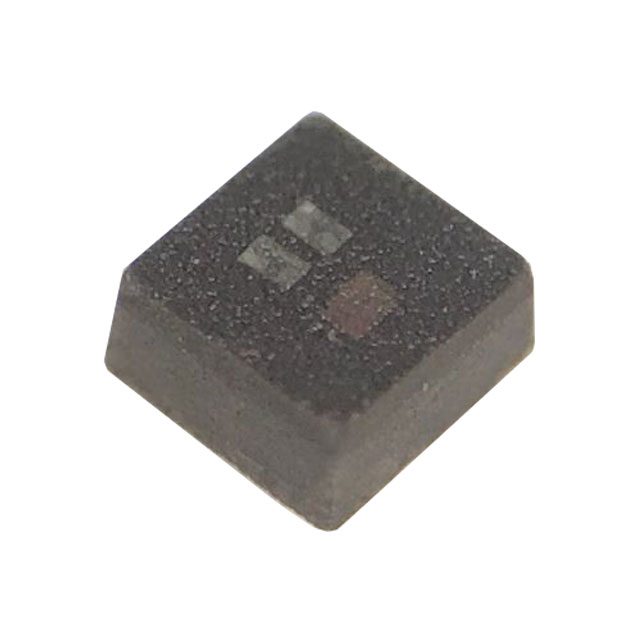

Description：LED RGB 0404 SMD
Series：-
Mfr：Cree LED
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7dcc36b25a84 Category: LED Indication - Discrete Brand: Cree LED

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UHD1110-FKA-CL1A13R3Q1BBQFMF3 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Cree LED. Its product description is LED RGB 0404 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for UHD1110-FKA-CL1A13R3Q1BBQFMF3

Description：LED RGB 0404 SMD
Series：-
Mfr：Cree LED
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：-
Lens Transparency：-
Millicandela Rating：78mcd Red, 106mcd Green, 24mcd Blue
Lens Style：Square with Flat Top
Lens Size：1.00mm
Voltage - Forward (Vf) (Typ)：1.9V Red, 2.9V Green, 2.9V Blue
Current - Test：5mA Red, 5mA Green, 5mA Blue
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：0404 (1010 Metric)
Supplier Device Package：404
Size / Dimension：1.00mm L x 1.00mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for UHD1110-FKA-CL1A13R3Q1BBQFMF3

UHD1110-FKA-CL1A13R3Q1BBQFMF3

LED Indication - Discrete Overview

The UHD1110-FKA-CL1A13R3Q1BBQFMF3 is a multi-color RGB surface-mount LED manufactured by Cree LED. It features a colorless lens and utilizes SMD/SMT installation style. The component is classified under Multi-Color LEDs within the LEDs subcategory. It has a unit weight of 44.370 mg and is moisture sensitive. Factory packaging quantities are listed as 10,000 units.

LED Indication - Discrete Feature Summary

Multi-color RGB configuration
Surface-mount device (SMD) construction
Colorless lens design

LED Indication - Discrete Applications

LED Indication - Discrete Procurement Notes

This component is officially designated as End-of-Life (EOL). A Product Discontinuance Notification was issued on July 1, 2024. Verification of final availability through authorized distributors is required, as standard supply channels may no longer support new orders for this specific part number.

LED Indication - Discrete Selection Notes

Designers should consider that this part is discontinued. Alternative RGB SMD LEDs from the same manufacturer or compatible families must be evaluated for pin compatibility and optical characteristics to ensure successful integration into existing designs without re-engineering.

LED Indication - Discrete Part Context

This part belongs to the UHD series of multi-color LEDs produced by Cree LED. It is distinct from other Cree LED packages such as the CLVBA series due to its specific form factor and mounting requirements. The product falls under general optoelectronic indicators rather than specialized automotive or high-power lighting drivers.
