UHD111A-FKA-C3K23E1L3VG5ZB3Z3

$0.09

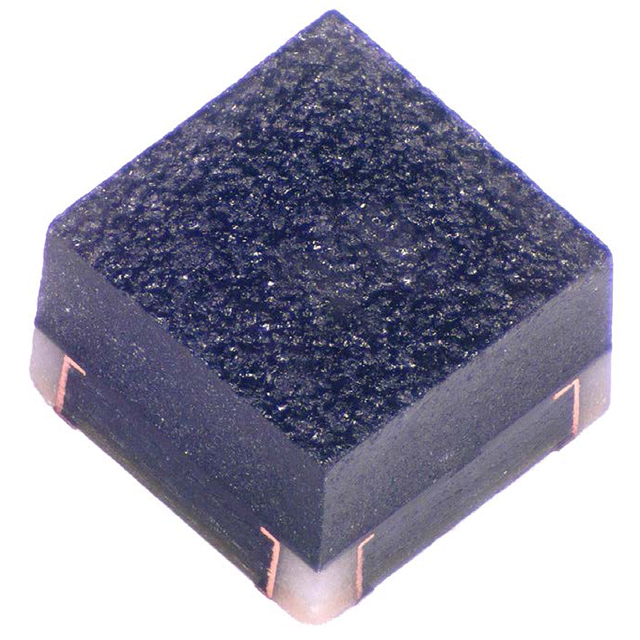

Description：LED RGB 0404 SMD
Series：-
Mfr：Cree LED
Package：Tape & Reel (TR)

SKU:6f2e48e1941c Category: LED Indication - Discrete Brand: Cree LED

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UHD111A-FKA-C3K23E1L3VG5ZB3Z3 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Cree LED. Its product description is LED RGB 0404 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for UHD111A-FKA-C3K23E1L3VG5ZB3Z3

Description：LED RGB 0404 SMD
Series：-
Mfr：Cree LED
Package：Tape & Reel (TR)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：-
Lens Transparency：-
Millicandela Rating：35mcd Red, 60mcd Green, 12mcd Blue
Lens Style：Square with Flat Top
Lens Size：1.00mm
Voltage - Forward (Vf) (Typ)：2V Red, 2.7V Green, 2.7V Blue
Current - Test：5mA Red, 3mA Green, 3mA Blue
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：620nm Red, 526nm Green, 467nm Blue
Wavelength - Peak：-
Features：-
Package / Case：0404 (1010 Metric)
Supplier Device Package：404
Size / Dimension：1.00mm L x 1.00mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for UHD111A-FKA-C3K23E1L3VG5ZB3Z3

UHD111A-FKA-C3K23E1L3VG5ZB3Z3

LED Indication - Discrete Overview

The UHD111A-FKA-C3K23E1L3VG5ZB3Z3 is a surface-mount RGB LED from Cree LED, featuring a common anode configuration and a square lens with a flat top. It operates at a forward current of 5mA for red and 3mA for green/blue channels. Typical forward voltages are 2V for red and 2.7V for green and blue. Luminous intensity ratings include 38mcd (red), 66.5mcd (green), and 14mcd (blue). The component has a 1.00mm lens size and operates within a temperature range of -40°C to +85°C.

LED Indication - Discrete Feature Summary

Integrated RGB tri-color structure in a compact 1.0 x 1.0 mm SMD package
Common anode electrical configuration for simplified circuit design
Square lens with flat top geometry for consistent optical output

LED Indication - Discrete Applications

Indoor high-resolution video screens
Decorative lighting systems
Amusement applications requiring full-color display

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official datasheets to confirm binning and wavelength tolerances. Check manufacturer discontinuation notices as some variants may be end-of-life. Confirm moisture sensitivity levels and reflow soldering profiles prior to assembly. Ensure compatibility with existing PCB footprints and CAD models.

LED Indication - Discrete Selection Notes

Select this component for indoor applications requiring small pixel pitch and high brightness. Compare luminous intensity values against ambient light requirements. Verify thermal management capabilities given the operating temperature range. Ensure drive circuits support the specified forward current limits for each color channel.

LED Indication - Discrete Part Context

This part belongs to the UHD111A series, designed for high-brightness indoor signage. It replaces older P2 LEDs in modern displays. The series offers wide viewing angles and reliable performance in harsh environments. It is optimized for large-format video screens and digital advertising signs.
