ULN2003A-EV

Overview

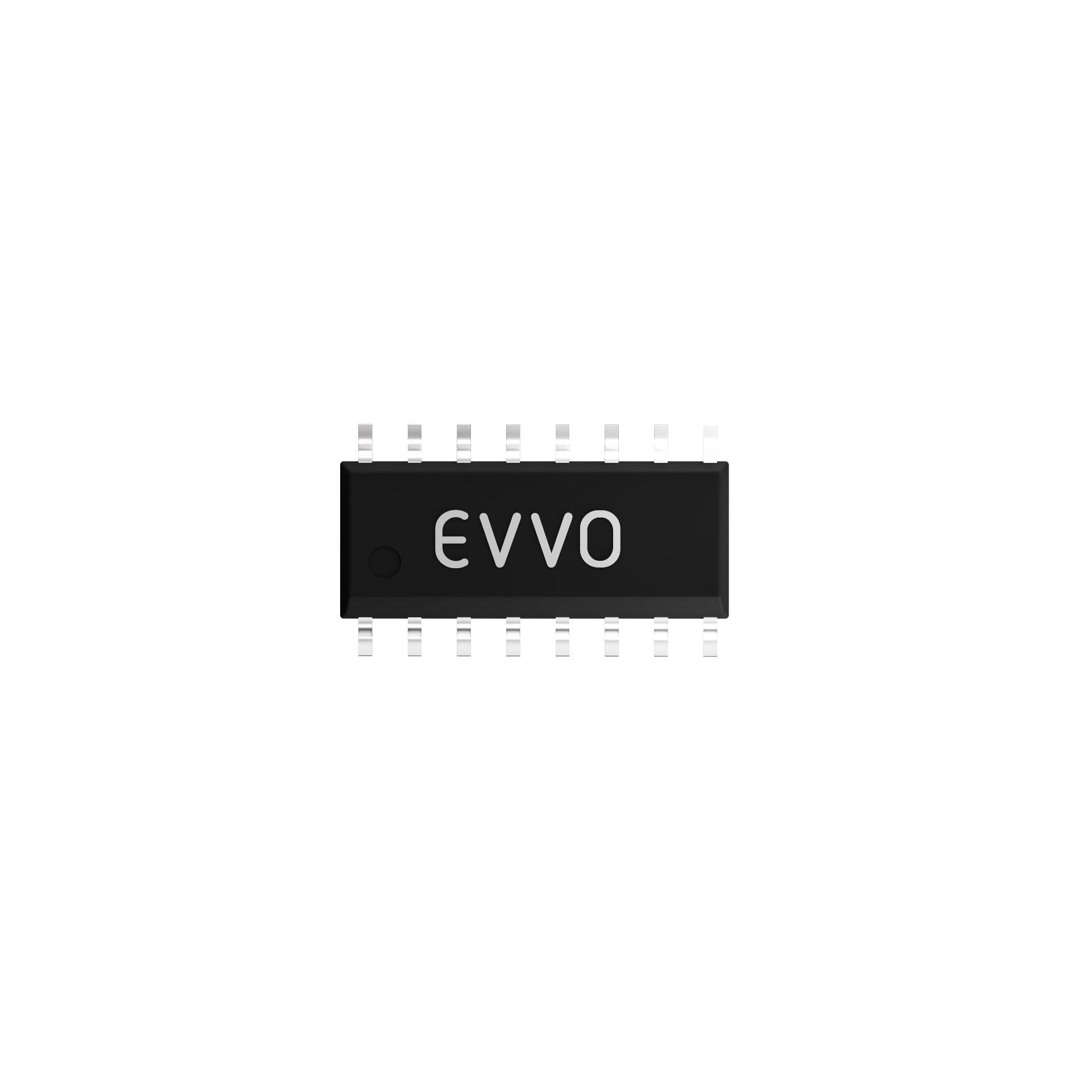

The EVVO ULN2003A-EV is a high-voltage, high-current Darlington transistor array integrated circuit. It integrates seven independent NPN Darlington pairs, each with an internal base resistor, designed to interface directly with TTL and CMOS logic levels. The device provides a continuous output current of 500mA per channel and can withstand a maximum collector-emitter voltage of 50V. A common cathode clamp diode is included on pin 9 to suppress back-EMF from inductive loads. This component serves as a robust driver for relays, solenoids, and stepper motors in embedded systems.

Feature Summary

• Integrates seven independent Darlington transistor channels for multi-load control
• Features built-in 2.7kΩ base resistors for direct TTL/CMOS compatibility
• Includes a common cathode clamp diode for inductive load protection
• Supports high-voltage operation up to 50V with 500mA per-channel drive capability

Applications

• Driving stepper motors in automation equipment
• Actuating electromagnetic relays and solenoids
• LED matrix display drivers
• Logic buffer expansion for microcontroller GPIO ports

Procurement Notes

Verify the manufacturer designation 'EVVO' against official distributor catalogs or original manufacturer datasheets, as ULN2003A is primarily associated with legacy semiconductor firms. Confirm that the specific suffix '-EV' denotes a valid commercial grade variant rather than a generic rebrand. Request the official electrical characteristics table to ensure compliance with required voltage and current specifications before integration into production designs.

Selection Notes

Select this component when a microcontroller requires driving multiple high-current inductive loads without external discrete transistors. Ensure the system power supply does not exceed the 50V maximum rating. Verify that the total power dissipation across all active channels remains within the package's thermal limits. Consider the open-collector output structure, which necessitates connecting loads between the positive supply and the output pins for proper sinking operation.

Part Context

The ULN2003A architecture is a standard industry solution for low-cost, high-density switching applications. While originally defined by major manufacturers like Texas Instruments and STMicroelectronics, components bearing the 'EVVO' prefix likely represent a regional or specialized manufacturing source. The functional pinout and electrical parameters remain consistent with the universal ULN2003A specification, ensuring interchangeability in standard DIP-16 or SOP-16 footprints.

Replacement Considerations

• ULN2003A (Standard Industry Equivalent)
• TD62003AP (Complementary PNP Version)

FAQ

How should the common cathode diode pin be connected?

Pin 9 is the common cathode connection for the internal flyback diodes. For inductive loads such as relays or motors, it must be connected to the same positive supply voltage (VCC) used by the load to provide a path for reverse current.

Can this chip drive both NPN and PNP loads?

No, the ULN2003A consists exclusively of NPN Darlington pairs. It sinks current to ground. To drive PNP loads, a complementary device such as the TD62003 series is required.

What is the input logic level compatibility?

The internal 2.7kΩ base resistors allow direct interfacing with 5V TTL and CMOS logic. It is generally compatible with 3.3V logic systems, though verification of the specific V_IH threshold is recommended for marginal cases.
