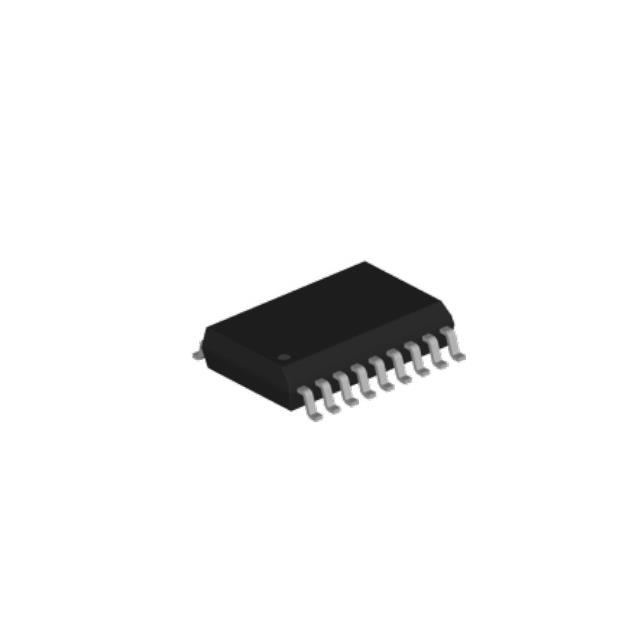

ULN2803AD

$0.27

Description：TRANS 8NPN DARL 50V 0.5A SOP-18
Series：-
Mfr：TAEJIN
Package：Tape & Reel (TR)

SKU:ae64bd00eae7 Category: Gates and Inverters Brand: TAEJIN

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ULN2803AD is listed in the Inverter Gates range at ChipApex. The manufacturer field lists TAEJIN. Its product description is TRANS 8NPN DARL 50V 0.5A SOP-18. Review the specifications below when checking this part for your BOM.

Inverter Gates specifications for ULN2803AD

Description：TRANS 8NPN DARL 50V 0.5A SOP-18
Series：-
Mfr：TAEJIN
Package：Tape & Reel (TR)
Logic Type：-
Number of Circuits：-
Number of Inputs：-
Features：-
Voltage - Supply：-
Current - Quiescent (Max)：-
Current - Output High, Low：-
Input Logic Level - Low：-
Input Logic Level - High：-
Max Propagation Delay @ V, Max CL：-
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：18-SOP
Package / Case：18-SOIC (0.154", 3.90mm Width)
Grade：-
Qualification：-

Inverter Gates datasheet and documents for ULN2803AD

ULN2803AD

Inverter Gates Overview

The ULN2803AD is an 8-channel NPN Darlington transistor array manufactured by TAEJIN in a SOP-18 package. It features high-voltage outputs rated at 50V and a single-output collector current of 500mA. The device integrates common-cathode clamp diodes for switching inductive loads. Input pins are positioned opposite to output pins to simplify circuit layout.

Inverter Gates Feature Summary

Integrates eight NPN Darlington pairs with high-voltage outputs
Includes common-cathode clamp diodes for inductive load protection
Features input pins placed opposite to output pins to simplify layout

Inverter Gates Applications

Relay Drivers
Stepper and DC Brushed Motor Drivers
Lamp Drivers
Display Drivers
Logic Buffers

Inverter Gates Procurement Notes

Verify the manufacturer designation as TAEJIN against the HTC datasheet provided in the source material, which lists the part number ULN2803AD under HTC branding. Confirm that the SOP-18 package marking matches the specific revision R1.0.3 documented in the reference text before finalizing procurement specifications.

Inverter Gates Selection Notes

Select this component when driving inductive loads such as relays or motors requiring up to 500mA per channel. The integrated clamp diodes eliminate the need for external flyback protection. Ensure the logic interface voltage levels remain within the specified ON-state input voltage limits for reliable switching operation.

Inverter Gates Part Context

This component belongs to the ULN2803A series of monolithic high-voltage, high-current Darlington transistor arrays. The ULN2803AD specifically denotes the SOP-18 surface-mount variant, while the ULN2803AN represents the DIP-18 through-hole version. Both variants share identical electrical characteristics and pin configurations.
