ULP-105+

Overview

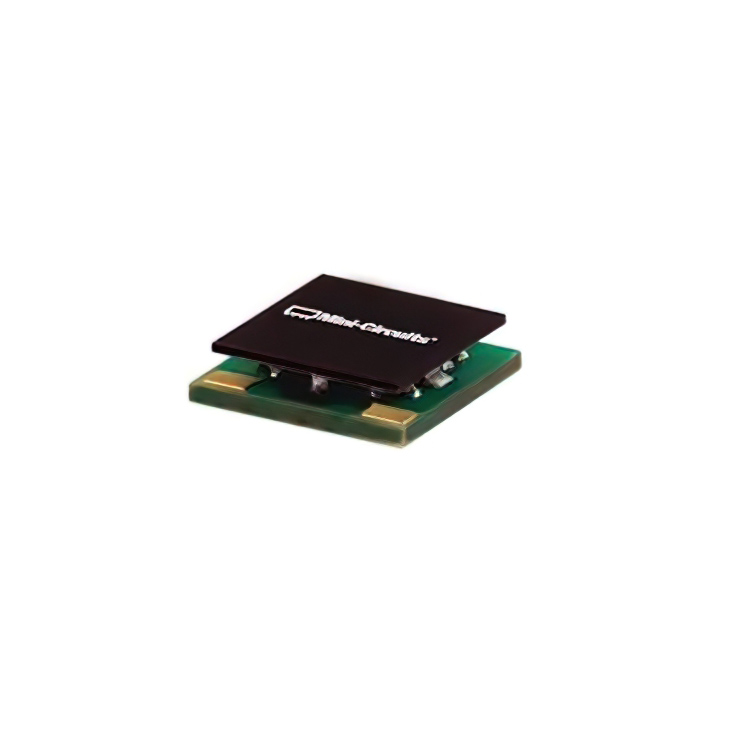

The ULP-105+ is a lumped LC low pass filter manufactured by Mini-Circuits, designed for signal conditioning applications. It operates within a frequency range of DC to 105 MHz and features a nominal impedance of 50 Ohms. The component utilizes surface mount technology (SMT) and is housed in a compact top hat package with dimensions of 0.25 inches by 0.25 inches. Key electrical specifications include an insertion loss of 2 dB and a cutoff frequency of 116 MHz. The device complies with RoHS and REACH standards.

Feature Summary

• Utilizes miniature high Q capacitors to ensure good matching within the passband and high rejection characteristics.
• Fabricated using surface mount technology in a compact top hat package for efficient PCB integration.
• Provides reliable signal filtering across the DC to 105 MHz bandwidth.

Applications

• RF signal conditioning
• Frequency synthesis systems
• Broadband filter implementations

Procurement Notes

Verify the specific datasheet version and case style (QA2224) before procurement. Confirm compliance requirements such as RoHS and REACH status. Ensure the ordering suffix matches the required termination type. Check for any recent design changes that may affect pinout or performance parameters. Validate compatibility with existing PCB layouts.

Selection Notes

Select this component when a low pass filter with a cutoff near 105 MHz is required. Consider the 50 Ohm impedance match for system integration. Evaluate the SMT package size against available board space. Assess the insertion loss specification against system sensitivity requirements. Compare performance metrics with alternative filters in the LFCN series if different form factors are needed.

Part Context

The ULP-105+ belongs to the Mini-Circuits lineup of RF and microwave signal processing components. It is categorized under low pass filters and is part of the broader portfolio used in wireless communications and industrial control. The manufacturer specializes in devices for frequencies up to 7800 MHz, offering both surface mount and coaxial formats.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Mini-Circuits resources for equivalent models or cross-reference options based on specific electrical requirements.

FAQ

What is the physical package style of the ULP-105+?

The ULP-105+ is housed in a top hat package with dimensions of 0.25 inches by 0.25 inches.

Does the ULP-105+ comply with environmental regulations?

Yes, the component complies with RoHS and REACH standards.
