UPD70F3376AM2GCA2-UEU-AX

Microcontrollers Overview

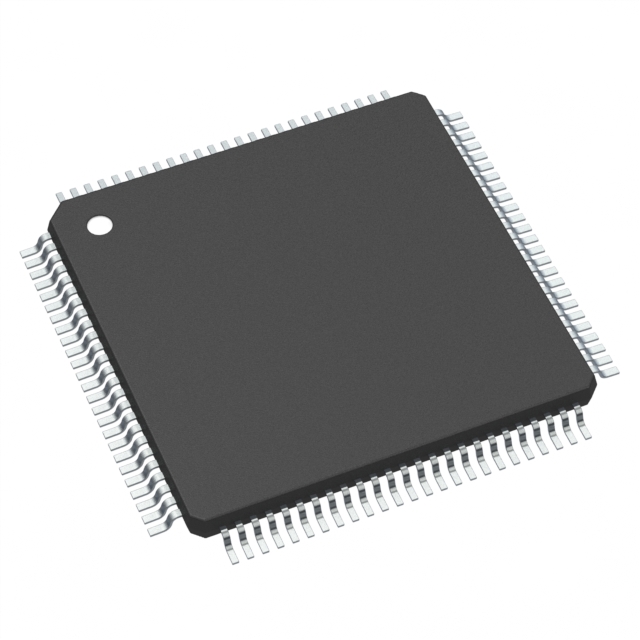

The UPD70F3376AM2GCA2-UEU-AX is a 32-bit microcontroller belonging to the V850ES/FG3 series, manufactured by Renesas Electronics. It utilizes the V850ES CPU core and integrates peripheral functions including ROM/RAM, timers, serial interfaces, A/D converters, DMA controllers, CAN, USB function controllers, and an IEEE 802.3-compliant Ethernet controller. The device operates within a supply voltage range of 2.85V to 3.6V and supports a maximum operating frequency of 50MHz. It features a 100-pin LQFP package with an operating temperature range of -40°C to +85°C.

Microcontrollers Feature Summary

• Integrates an IEEE 802.3-compliant Ethernet controller for network connectivity
• Includes a built-in USB function controller for peripheral communication
• Features a DMA controller to reduce CPU load during data transfers
• Supports Controller Area Network (CAN) for automotive and industrial applications

Microcontrollers Applications

• Office security systems
• Automotive multimedia equipment
• Digital home electronics requiring network connectivity

Microcontrollers Procurement Notes

This component is officially designated as obsolete or end-of-life by the manufacturer. Availability is restricted, and sourcing may require checking for existing stock from authorized distributors or secondary market suppliers. Verification of part authenticity and condition is critical due to the discontinued status. Designers should consider replacement strategies for new projects.

Microcontrollers Selection Notes

Select this MCU when legacy V850ES architecture compatibility is required alongside integrated Ethernet and USB capabilities. It is suitable for applications needing robust automotive-grade peripherals like CAN in a 100-pin form factor. Evaluate pinout compatibility and memory requirements against current design specifications before procurement.

Microcontrollers Part Context

The UPD70F3376AM2GCA2-UEU-AX is part of the V850ES/Fx3 family, designed for high-performance embedded control. This series emphasizes cost-effectiveness and low power consumption while providing extensive peripheral integration. It targets markets such as office automation and automotive infotainment where reliable networking and I/O are essential.

Microcontrollers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, direct pin-to-pin replacements may not exist. Engineers should review the V850ES/Jx3-E or newer Renesas families for functional equivalents, ensuring software and hardware compatibility.
