UPD70F3575GKA2-GAK-E2-AX

Microcontrollers Overview

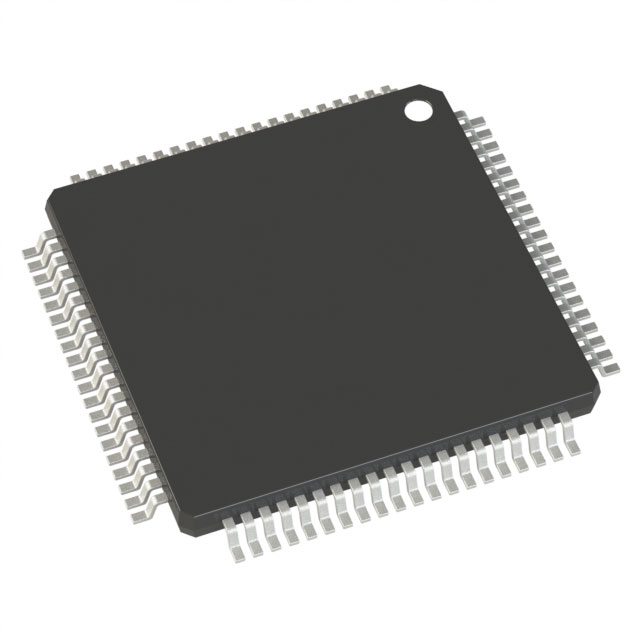

The UPD70F3575GKA2-GAK-E2-AX is a 32-bit microcontroller from the V850E2/FX4-L series by Renesas Electronics. It features a 48 MHz clock speed, 512 KB of Flash program memory, and 32 KB of RAM. The device includes an EEPROM size of 32K x 8 bytes. It integrates fourteen 10-bit SAR A/D converters and utilizes an internal oscillator. Operating voltage ranges from 3V to 5.5V. The component is housed in an 80-pin LFQFP package with dimensions of 12x12 mm.

Microcontrollers Feature Summary

• Integrates fourteen 10-bit successive approximation analog-to-digital converters for signal processing.
• Utilizes an internal oscillator system for clock generation without external components.
• Provides substantial non-volatile storage through combined Flash and EEPROM capacities.

Microcontrollers Applications

• Industrial control systems requiring high-speed data acquisition
• Automotive electronic modules needing robust analog input handling
• Embedded applications utilizing multiple sensor interfaces

Microcontrollers Procurement Notes

Verify the exact suffix E2 against official Renesas documentation to confirm specific manufacturing lot or revision details. Confirm availability status as this part may be discontinued or subject to limited supply. Ensure compatibility with existing PCB footprints for the 80-pin LFQFP package before procurement.

Microcontrollers Selection Notes

Select this component when designing systems requiring multiple high-resolution analog inputs within a single microcontroller unit. The V850E2 core offers sufficient processing power for complex logic while maintaining low power consumption. Consider the 3V to 5.5V operating range for flexible power supply design options in industrial environments.

Microcontrollers Part Context

This microcontroller belongs to the V850 family, known for automotive and industrial reliability. The FX4-L variant specifically targets applications needing extensive analog capabilities alongside standard digital control functions. It represents a specialized solution within Renesas' broader portfolio of 32-bit MCUs designed for harsh operating conditions.

Microcontrollers Replacement Considerations

Consult official Renesas cross-reference guides for direct pin-compatible substitutes. Verify if newer revisions within the V850E2 series offer improved performance or extended availability. Check for any functional differences in peripheral configurations when selecting alternative part numbers.

Microcontrollers FAQ

What type of analog-to-digital converter is integrated into this MCU?

The UPD70F3575GKA2-GAK-E2-AX incorporates fourteen 10-bit Successive Approximation Register (SAR) A/D converters.

Does this microcontroller require an external crystal oscillator?

No, the device features an internal oscillator, eliminating the need for external timing components.
