UPD78F0501AMC-CAB-E2-AX

Microcontrollers Overview

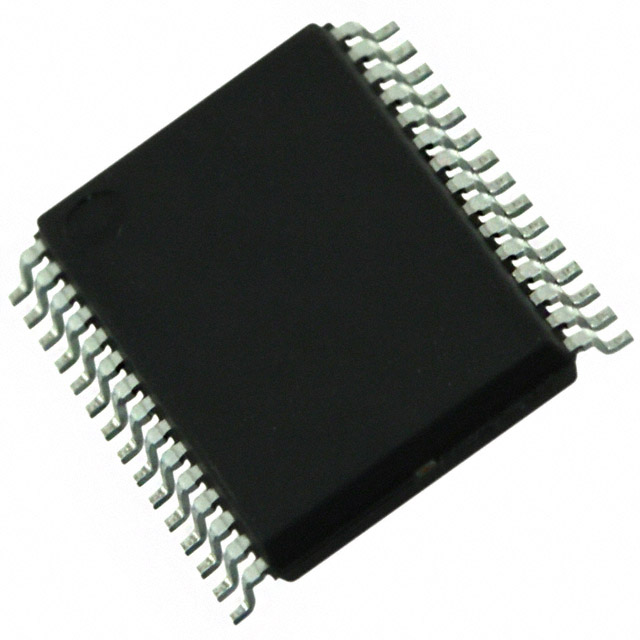

The UPD78F0501AMC-CAB-E2-AX is an 8-bit microcontroller from the Renesas 78K0/Kx2 series. It features 16 KB of Flash program memory and 0.75 KB of RAM. The device operates within a supply voltage range of 1.8 V to 5.5 V and includes 23 I/O ports. Peripheral interfaces consist of four 8-bit timers and one 16-bit timer. It is housed in a 30-pin LSSOP package with dimensions of 9.7 x 6.1 x 1.4 mm, designed for automotive applications across a temperature range of -40°C to +85°C.

Microcontrollers Feature Summary

• Integrated 16 KB Flash memory for program storage
• Supports wide operating voltage from 1.8V to 5.5V
• Includes multiple timer channels for control tasks

Microcontrollers Applications

• Automotive electronic systems
• General-purpose microcontroller applications
• Embedded control modules requiring 8-bit processing

Microcontrollers Procurement Notes

Verify component authenticity through authorized distributors. Confirm package integrity and pin alignment against the 30-pin LSSOP specification. Check manufacturing date codes for compliance with project timelines. Ensure storage conditions meet humidity sensitivity requirements. Validate that the specific suffix matches the required voltage and temperature ratings.

Microcontrollers Selection Notes

Select this model when 16 KB of non-volatile memory and 0.75 KB of RAM are sufficient for the application logic. Consider the 78K0/Kx2 architecture for compatibility with existing development tools. Evaluate the 30-pin LSSOP footprint against PCB layout constraints. Verify that the 1.8V to 5.5V operating range aligns with the system power supply design.

Microcontrollers Part Context

This component belongs to the Renesas 78K0 family, specifically the Kx2 sub-series designed for cost-effective 8-bit control applications. The 78K0 series utilizes a CISC architecture optimized for efficiency. This part represents a standard offering within the automotive-grade MCU portfolio, balancing performance with low power consumption for embedded environments.

Microcontrollers Replacement Considerations

Consult official Renesas documentation for direct substitutes. Cross-reference pinouts and memory sizes when evaluating alternatives. Verify that any replacement maintains the 30-pin LSSOP form factor or requires adapter solutions.
