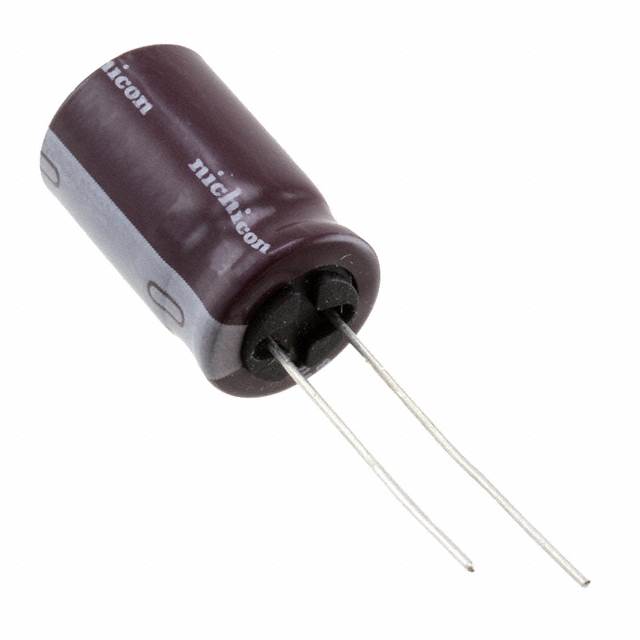

Aluminum Electrolytic Capacitors UPS1V681MHD1TO product image

UPS1V681MHD1TO

$1.07

Description：CAP ALUM 680UF 20% 35V RADIAL TH
Series：UPS
Mfr：Nichicon
Package：Cut Tape (CT),Tape & Box (TB)

SKU:60a6e31a0dba Category: Aluminum Electrolytic Capacitors Brand: Nichicon

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UPS1V681MHD1TO is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 680UF 20% 35V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UPS1V681MHD1TO

Description：CAP ALUM 680UF 20% 35V RADIAL TH
Series：UPS
Mfr：Nichicon
Package：Cut Tape (CT),Tape & Box (TB)
Capacitance：680 µF
Tolerance：±20%
Voltage - Rated：35 V
ESR (Equivalent Series Resistance)：-
Lifetime @ Temp.：3000 Hrs @ 105°C
Operating Temperature：-55°C ~ 105°C
Polarization：Polar
Ratings：-
Applications：General Purpose
Ripple Current @ Low Frequency：887.5 mA @ 120 Hz
Ripple Current @ High Frequency：1.25 A @ 100 kHz
Lead Spacing：0.197" (5.00mm)
Size / Dimension：0.492" Dia (12.50mm)
Height - Seated (Max)：0.866" (22.00mm)
Surface Mount Land Size：-
Mounting Type：Through Hole
Package / Case：Radial, Can
Impedance：75 mOhms
