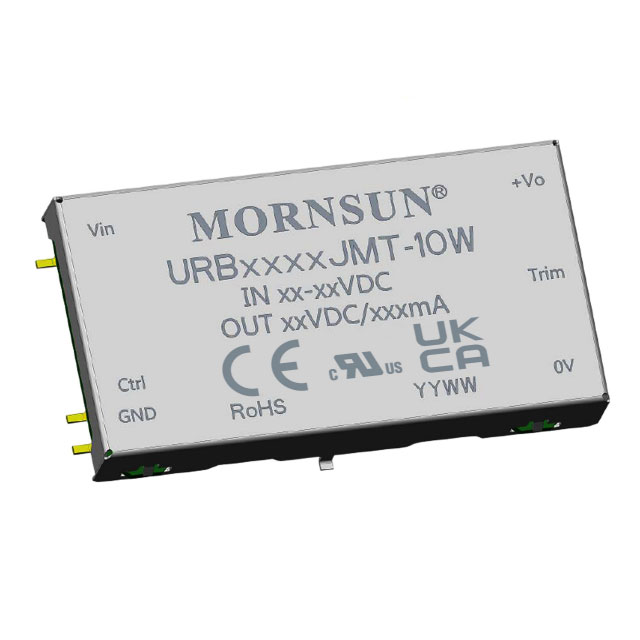

URB2412JMT-10W

URB2412JMT-10W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER 12V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for URB2412JMT-10W

• Description：DC DC CONVERTER 12V 10W
• Series：URB2412JMT-10W (10W)
• Mfr：Mornsun America, LLC
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：833mA
• Power (Watts)：9.9 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：87%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus, UKCA, UL
• Standard Number：62368-1

DC DC Converters datasheet and documents for URB2412JMT-10W
