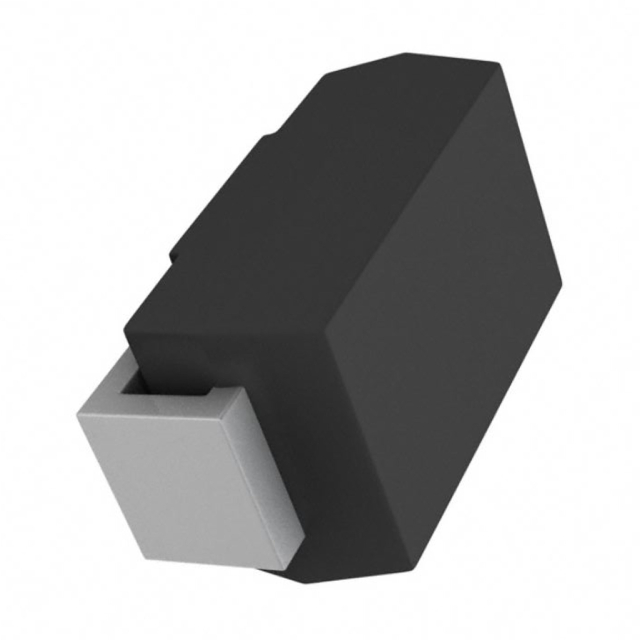

US1M is listed in the Single Diodes range at ChipApex. The manufacturer field lists Shenzhen Slkormicro Semicon Co., Ltd.. Its product description is 1.7V@1A 75NS INDEPENDENT TYPE 1A. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for US1M
- Description：1.7V@1A 75NS INDEPENDENT TYPE 1A
- Series：-
- Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1000 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：1.7 V @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：75 ns
- Current - Reverse Leakage @ Vr：5 µA @ 1000 V
- Capacitance @ Vr, F：17pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：DO-214AC, SMA
- Supplier Device Package：DO-214AC (SMA)
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for US1M
Single Diodes Overview
The US1M is a 1.0A surface mount ultra-fast recovery rectifier manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It features a maximum repetitive peak reverse voltage of 1000 V and a maximum DC blocking voltage of 1000 V. The device has a maximum average forward rectified current of 1.0 A and a peak forward surge current of 30 A. Electrical characteristics include a maximum instantaneous forward voltage of 1.7 V at 1.0 A, a maximum DC reverse current of 100 µA at 125°C, and a maximum reverse recovery time of 75 ns. Typical junction capacitance is 17 pF at 4 V and 1 MHz. The component operates within a temperature range of -55°C to +150°C.
Single Diodes Feature Summary
- Glass passivated junction chip for reliability
- Fast switching capability for high efficiency
- Surface mounted application design
- RoHS compliant plastic material with UL Classification 94V-0
Single Diodes Applications
- High frequency rectification circuits
- Free wheeling diodes
- Polarity protection applications
Single Diodes Procurement Notes
Verify the manufacturer part number US1M against Shenzhen Slkormicro Semicon Co., Ltd. documentation. Confirm the SMA (DO-214AC) package type and 1000 V rating match system requirements. Ensure compliance with RoHS standards and UL 94V-0 classification if specified in design constraints. Cross-reference datasheet electrical limits with operational conditions.
Single Diodes Selection Notes
Select this component for applications requiring fast recovery times and surface mount integration. The 1000 V reverse voltage rating suits high voltage rectification tasks. Verify thermal management capabilities within the -55°C to +150°C operating range. Consider the 75 ns reverse recovery time for high-frequency switching designs where standard recovery diodes may be insufficient.
Single Diodes Part Context
The US1M belongs to the US1 series of ultra-fast recovery rectifiers from Shenzhen Slkormicro Semicon Co., Ltd. This series includes variants with different reverse voltage ratings, such as US1A through US1K. All members share the same 1.0 A current rating and SMA package, differing primarily in their peak reverse voltage specifications.
Single Diodes Replacement Considerations
Compatible substitutes include ES1M from SMC Diode Solutions and US1MW from SKTECHNOLOGY. These alternatives offer similar 1000 V, 1 A specifications and DO-214AC packaging. Verify pinout compatibility and electrical parameters before substitution.
