US2500007

Crystals Overview

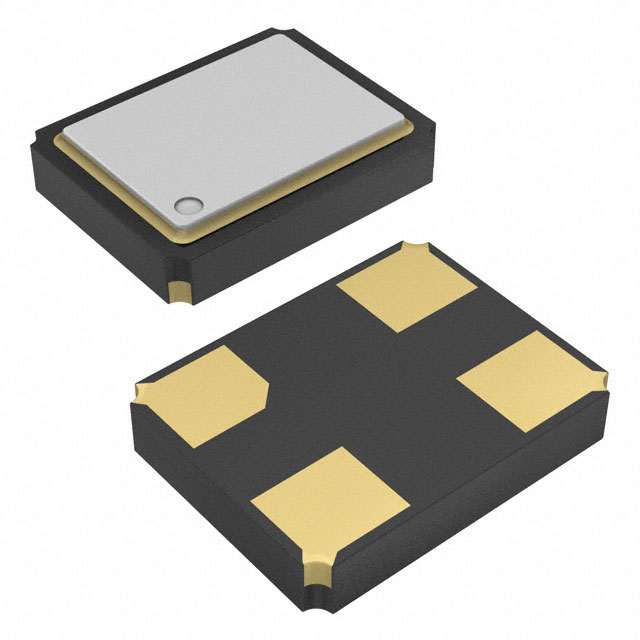

The US2500007 is a ceramic surface-mount crystal manufactured by Diodes Incorporated. It operates at a fundamental frequency of 25 MHz with a load capacitance of 18 pF and a frequency tolerance of ±10 ppm. The component features an equivalent series resistance (ESR) of 80 Ohms and a maximum operating temperature range of -40°C to +85°C. It utilizes a 4-SMD, no-lead package with dimensions of 3.2 mm in length, 2.5 mm in width, and 0.65 mm in height.

Crystals Feature Summary

• Provides stable timing signals for digital circuits through quartz resonance
• Designed for surface-mount assembly on printed circuit boards
• Operates within standard industrial temperature ranges

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• General-purpose digital logic circuits

Crystals Procurement Notes

Verify the specific datasheet version for the US2500007 to confirm exact electrical parameters, as distributor listings may vary regarding load capacitance values. Ensure compliance with RoHS directives and check for moisture sensitivity level requirements before procurement. Confirm packaging quantities match production needs.

Crystals Selection Notes

Select this component when a 25 MHz fundamental mode crystal is required for space-constrained designs. Consider the 80 Ohm ESR and 18 pF load capacitance against the oscillator circuit's design specifications. Evaluate the 4-SMD footprint compatibility with existing PCB layouts and thermal management requirements.

Crystals Part Context

This part belongs to Diodes Incorporated's line of ceramic crystals, which are passive components used for frequency control. These devices are distinct from active oscillators as they require an external circuit to generate a clock signal. The product family focuses on providing reliable timing solutions for consumer and industrial electronics.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
