UU9LFBNP-B283

Description：CMC 56MH 130MA 2LN TH
Series：UU
Mfr：Sumida America Components Inc.
Package：Bulk

SKU:195229af17d7 Category: Common Mode Chokes Brand: Sumida America Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 56MH 130MA 2LN TH
Series：UU
Mfr：Sumida America Components Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：130mA
DC Resistance (DCR) (Max)：13Ohm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.650" L x 0.433" W (16.50mm x 11.00mm)
Height (Max)：0.650" (16.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：56 mH @ 1 kHz
Impedance @ Frequency：-

Download product information

UU9LFBNP-B283

Overview

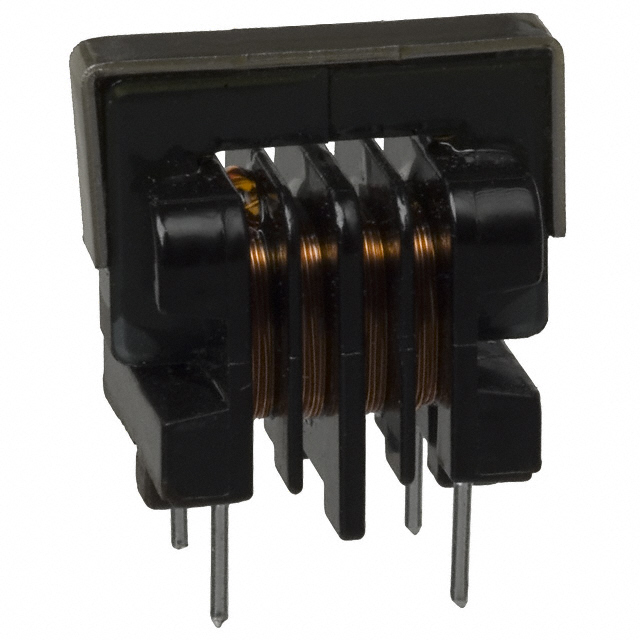

The UU9LFBNP-B283 is a vertical through-hole AC common mode choke from the Sumida UU9LFB series. It features four pins and measures 16.50mm in length by 11.00mm in width. The component provides a common mode inductance of 56mH with a rated current capacity of 130mA.

Feature Summary

Designed for AC line filtering applications
Vertical through-hole mounting configuration
Four-pin terminal structure

Applications

AC power line noise suppression
Electromagnetic interference (EMI) filtering
Power supply input stages

Procurement Notes

Verify the specific part number against official Sumida documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing PCB layouts regarding pin spacing and height constraints. Cross-reference datasheets for thermal performance limits under expected operating conditions.

Selection Notes

Select this component based on the required 56mH inductance value and 130mA current rating. Confirm that the vertical through-hole package fits the assembly process. Evaluate the impedance characteristics against target noise frequencies to ensure effective attenuation without affecting normal signal transmission.

Part Context

This device belongs to the UU9LFB series of common mode chokes manufactured by Sumida America Components Inc. The series offers various inductance values tailored for different power line filtering requirements, utilizing a standardized vertical through-hole footprint for consistent integration across multiple product designs.
