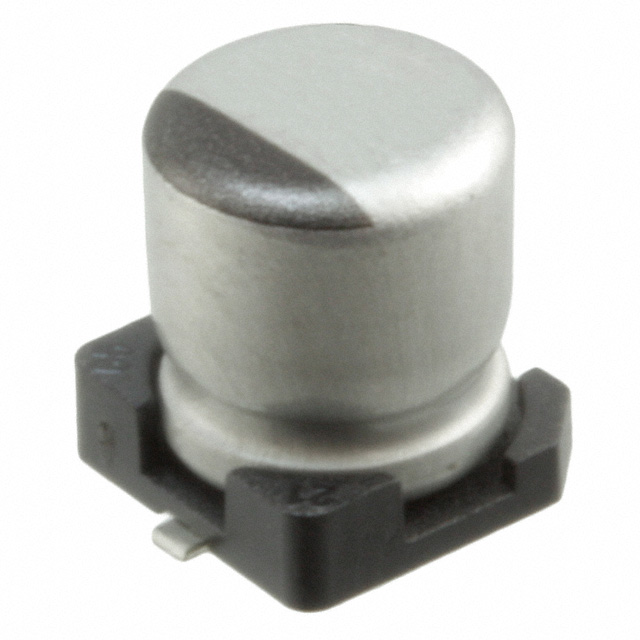

Aluminum Electrolytic Capacitors UUT1E100MCL1GS product image

UUT1E100MCL1GS

$0.37

Description：CAP ALUM 10UF 20% 25V SMD
Series：UUT
Mfr：Nichicon
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f8ee324372ce Category: Aluminum Electrolytic Capacitors Brand: Nichicon

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UUT1E100MCL1GS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 10UF 20% 25V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UUT1E100MCL1GS

Description：CAP ALUM 10UF 20% 25V SMD
Series：UUT
Mfr：Nichicon
Package：Tape & Reel (TR),Cut Tape (CT)
Capacitance：10 µF
Tolerance：±20%
Voltage - Rated：25 V
ESR (Equivalent Series Resistance)：-
Lifetime @ Temp.：2000 Hrs @ 105°C
Operating Temperature：-55°C ~ 105°C
Polarization：Polar
Ratings：-
Applications：General Purpose
Ripple Current @ Low Frequency：23 mA @ 120 Hz
Ripple Current @ High Frequency：34.5 mA @ 10 kHz
Lead Spacing：-
Size / Dimension：0.197" Dia (5.00mm)
Height - Seated (Max)：0.240" (6.10mm)
Surface Mount Land Size：0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type：Surface Mount
Package / Case：Radial, Can - SMD

Aluminum Electrolytic Capacitors datasheet and documents for UUT1E100MCL1GS

UUT1E100MCL1GS
