UY1105W-TR

LED Indication - Discrete Overview

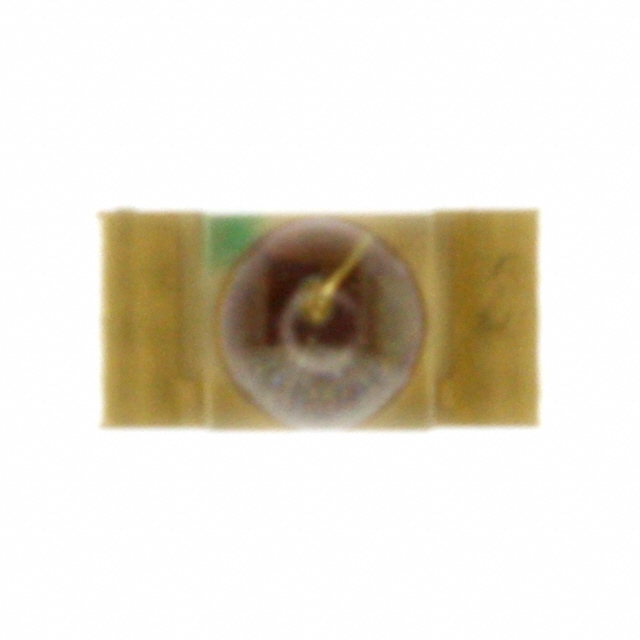

The UY1105W-TR is a surface-mount yellow LED from Stanley Electric Co, housed in a 1206 (3216 metric) package. It emits at a peak wavelength of 590 nm with a typical forward voltage of 2.2 V at a test current of 20 mA. The component features a clear, colorless dome lens and measures 3.2 mm in length, 1.6 mm in width, and up to 2.05 mm in height. It operates within a temperature range of -40°C to +85°C and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

• High brightness yellow emission for visibility
• Standard surface mount construction for automated assembly
• Dome lens design for optimized light distribution

LED Indication - Discrete Applications

• Electronic device status indicators
• Control panel illumination
• Instrumentation displays

LED Indication - Discrete Procurement Notes

Verify the specific datasheet for the UY1105W-TR variant, as parameters may differ from similar models like FY1105W-TR or HAY1105W-TR. Confirm moisture sensitivity level handling requirements during storage and reflow soldering processes. Ensure compatibility with standard SMD pick-and-place equipment due to the 1206 footprint dimensions.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact yellow indicator with high luminous intensity. Compare forward voltage and viewing angle specifications against circuit requirements. Consider the operating temperature range and thermal management needs for enclosed environments. Verify that the 20 mA test current aligns with available drive capabilities.

LED Indication - Discrete Part Context

This part belongs to the 1105W series of single-color LEDs manufactured by Stanley Electric Co. It shares the same physical package dimensions as other variants in the lineup but differs in optical characteristics such as wavelength and intensity. The series supports various colors including infrared and red, offering flexibility for different visual signaling needs.

LED Indication - Discrete Replacement Considerations

Direct substitutes include FY1105W-TR and HAY1105W-TR, provided their specific electrical and optical parameters match the design requirements. Verify pinout compatibility and mounting orientation before substitution.
